Mobile column milling machine ANAYAK HVM-3300 - 2001

SOLD

Type of milling machine

  • Type: Travelling Column
  • Brand: Anayak
  • Model: HVM-3300
  • Year of manufacture: 2001
  • Retrofitted: 2019
  • Numerical control: FANUC 21iM
Download technical data sheet View video

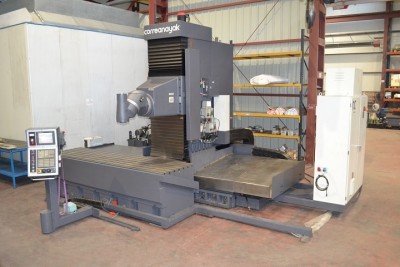

ANAYAK HVM-3300 mobile column and fixed bed milling machine. Has a great rigidity for machining pieces without weight limitation. Milling head without ram, on a fixed support, which allows higher precision and rigidity of the machine, preventing ram falls, expansions and vibrations. Long life machine-tool which geometry is guaranteed over time.

Second hand milling machine for sale refurbished and with guarantees.

Technical features

Dimensions

  • Table dimensions: 3600 x 1000 mm
  • Number of T slots: 7
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2700 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 1460 mm

Milling head

  • Head type: Multiangular 45º - Automatic axis B (1 º) & C (2,5 º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO50
  • Speed range: 60 - 4000 r.p.m.
  • Spindle power: 18,5/22 kW

Feedrates

  • Feedrate: 6000 mm/min
  • Rapid feedrate: 10000 mm/min

Weight and dimensions

  • Maximum weight on table: Without limitation

Accesories

  • Guarding
  • Chip conveyor
  • External coolant
  • Handy Machine Operator’s Panel: HMOP

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
