Milling machine ANAYAK HVM-7000 - 20020202

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Travelling Column
  • Brand: Anayak
  • Model: HVM-7000
  • Year of manufacture: 2002
  • Retrofitted: 2024
  • Numerical control: HEIDENHAIN TNC430
Download technical data sheet

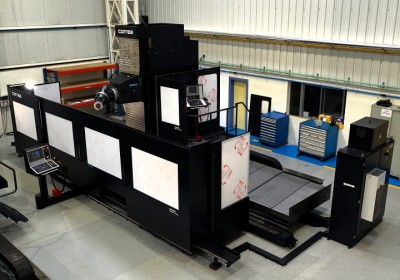

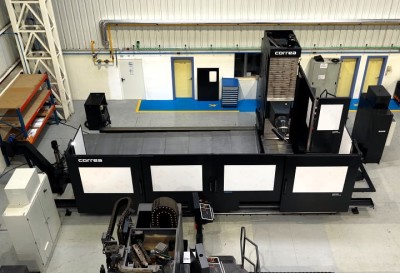

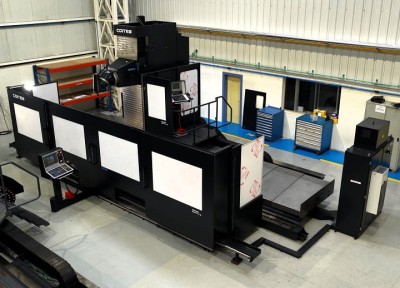

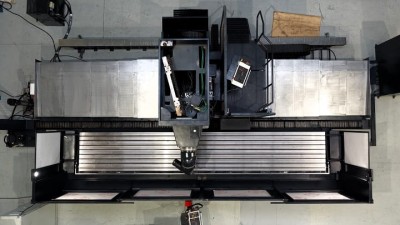

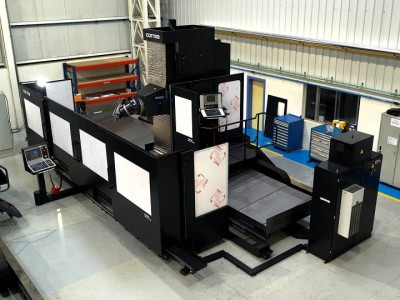

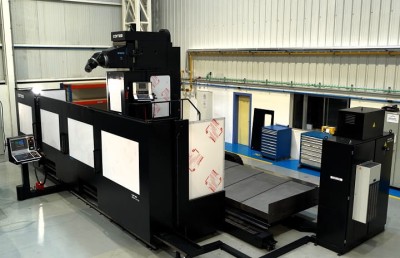

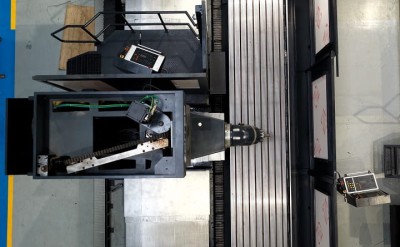

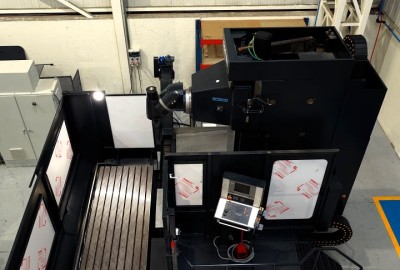

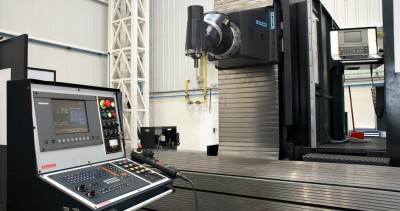

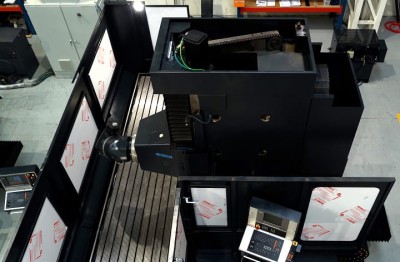

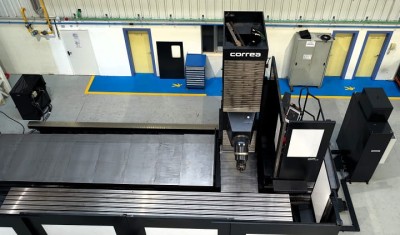

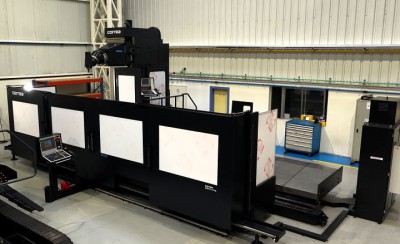

ANAYAK HVM-7000 travelling column milling machine, with a vertical traverse of 2 meters and numerical control unit HEIDENHAIN TNC-430. With automatic milling head automatic in B and C bodies.

Fixed bed and mobile column CNC machining centre.

Sale of used CNC ANAYAK milling machine, fully refurbished by NC SERVICE.

Sale option with new HEIDENHAIN TNC640 and new auto-indexing UGD milling head turning every 2.5º.

Technical features

Dimensions

  • Table dimensions: 7000 x 1200 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • Longitudinal traverse X: 6300 mm
  • Vertical traverse Y: 1200 mm
  • Transversal traverse Z: 2000 mm

Milling head

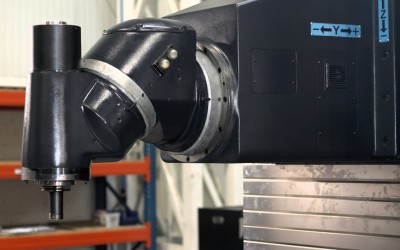

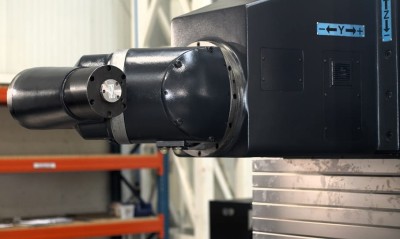

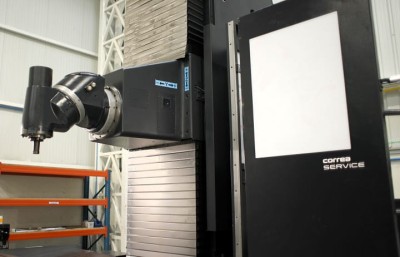

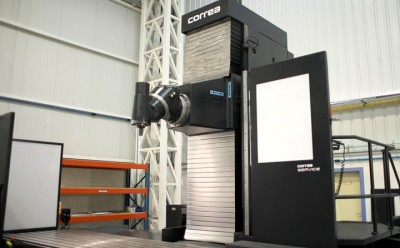

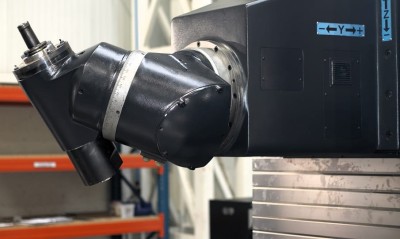

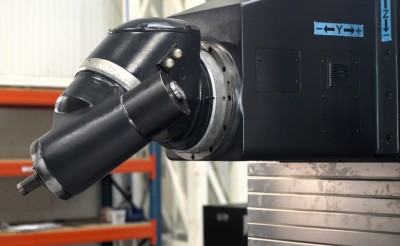

  • Head type: Auto-indexing BIRA. Automatic B&C bodies (every 2,5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871-B)   /   Pull stud: DIN 69872-B
  • Speed range: 60 - 3000 rpm
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 5000 mm/min
  • Rapid feedrate (X / Y,Z): 10000 mm/min

Weight and dimensions

  • Maximum weight on table: Undetermined
  • Machine weight approx.: 55000 kg
  • Machine dimensions approx.: 12800 x 6410 x 4610 mm

Accesories

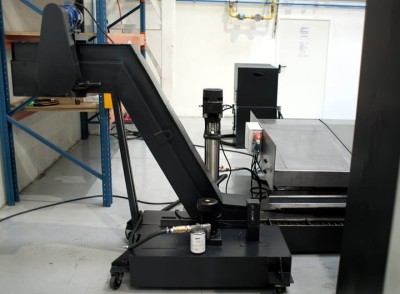

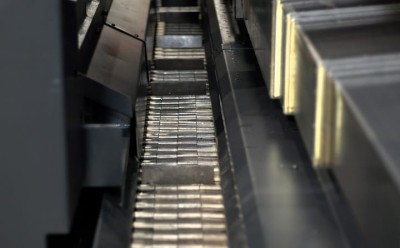

  • Chip conveyor: 1 rear longitudinal

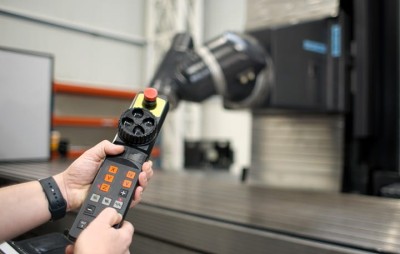

  • Electronic handwheel: New HR-510
  • External & internal through spindle coolant
  • Guarding

Sales conditions

  • No guarantees
  • Sale price (Ex Work): On request
View all technical features
