Milling machine CORREA A16 - 9681305

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: A16
  • Year of manufacture: 1987
  • Retrofitted: 2020

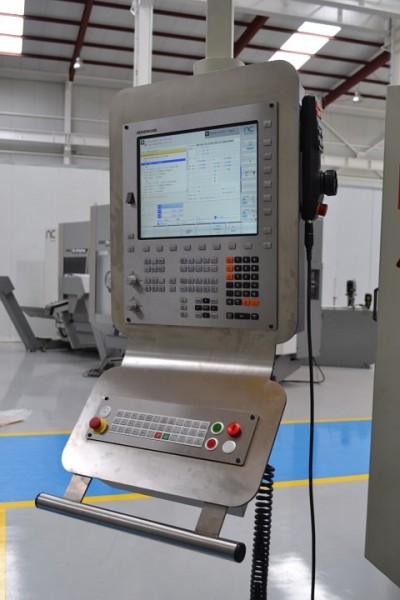

  • Numerical control: HEIDENHAIN TNC-320 (¡NUEVO! / NEW!)
Download technical data sheet View video

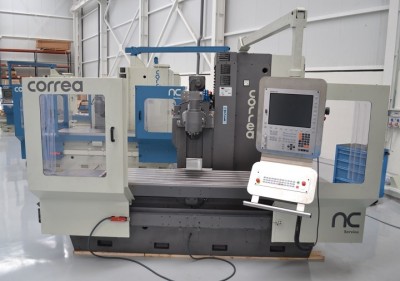

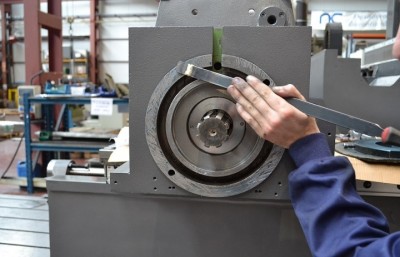

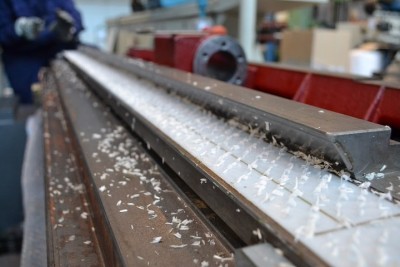

CORREA A16 bed type milling machine, completely retrofitted, with new HEIDENHAIN TNC-320. Ideal for small workshops for machining small parts. Despite its year of manufacture, its total mechanical and electronic refurbishment converts this used CORREA into a modern and reliable milling machine.

Milling machine for sale totally rebuilt. Guaranteed.

Technical features

Dimensions

  • Table dimensions: 2000 x 630 mm
  • Number of T slots: 6
  • T slots dimensions: 18 mm

Traverses of axis

  • X axis traverse: 1800 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

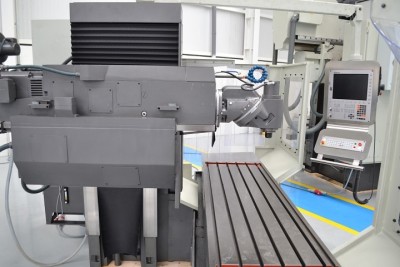

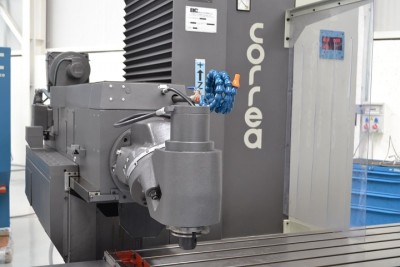

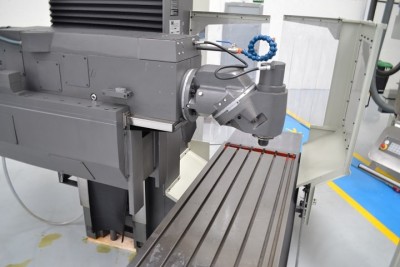

Milling head

  • Head type: Universal Manual
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 25 - 2600 rpm
  • Spindle power: 16 kW

Feedrates

  • Feedrate: 5 - 5000 mm/min
  • Rapid feedrate: 8000 mm/min

Weight and dimensions

  • Maximum weight on table: 3000 Kg
  • Machine weight: 10000 Kg
  • Machine dimensions: 4920 x 2714 x 2417 mm

Accesories

  • New guarding
  • New electronic handwheel: HR-510

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
