Milling Machine CORREA A25/30 - 1991

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: A25/30
  • Year of manufacture: 1991
  • Retrofitted: 2017

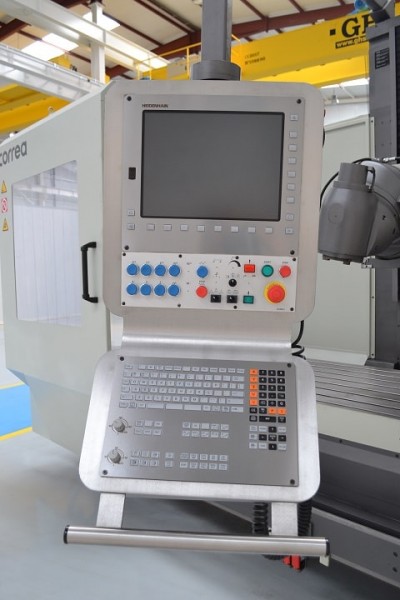

  • Numerical control: HEIDENHAIN TNC-530
Download technical data sheet View video

Technical features

Dimensions

  • Table dimensions: 3500 x 1100 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 3000 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 1500 mm

Milling head

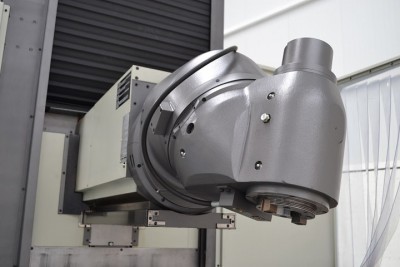

  • Head type: Automatic UDG-30 (2000 rpm / 3º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 2000 rpm
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 2 - 7000 mm/min
  • X-Y,Z Rapid feedrate: 10000 mm/min

Weight and dimensions

  • Maximum weight on table: 7000 Kg
  • Machine weight: 20000 Kg
  • Machine dimensions: 8000 x 3167 x 3400 mm

Accesories

  • Guarding
  • Electronic handwheel: HR-410

Sales conditions

  • Warranty: 6 months mechanical spare parts
  • Sale price (Ex Work): On request
View all technical features
