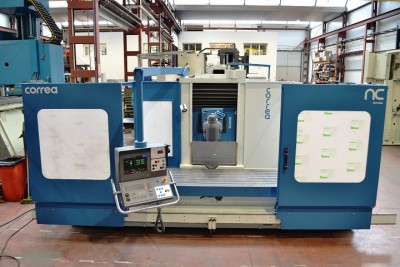

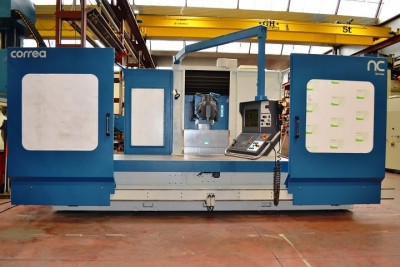

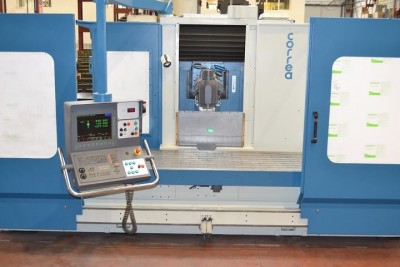

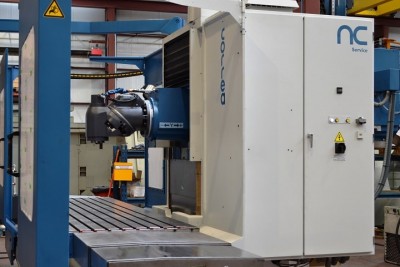

Bed type milling machine CORREA A25/30 - 9253802

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: A25/30
  • Year of manufacture: 1997
  • Retrofitted: 2020

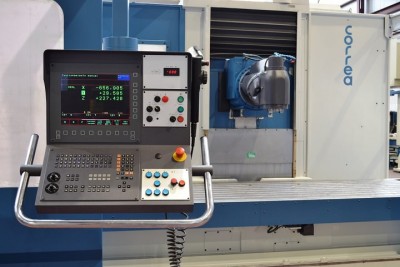

  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet View video

Bed type CORREA A25/30 milling machine fully mechanically inspected. The design concept of friction slideways brings this model with the rigidity and acuracy needed for strong and quality machining.

Used milling machine for sale.

Technical features

Dimensions

  • Table dimensions: 3000 x 1000 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 3000 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 1000 mm

Milling head

  • Head type: Universal manual
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 3000 r.p.m.
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 2 - 5000 mm/min
  • Rapid feedrate: X = 8000 mm/min / Y,Z = 10000 mm/min

Weight and dimensions

  • Max weight on table: 7000 kg
  • Machine weight: 19000 kg
  • Machine dimensions: 7810 x 4664 x 2750 mm

Accesories

  • Guarding: Yes
  • Electronic handwheel: HR-410

Sales conditions

  • Sale price (Ex Work): On request
View all technical features
