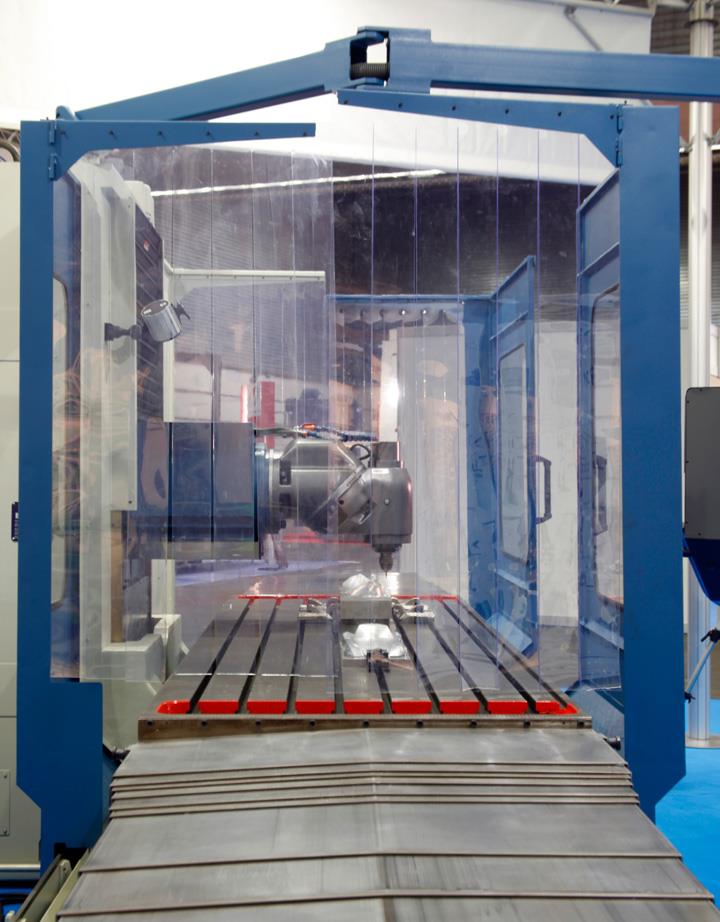

Milling Machine CORREA A30/30 2001

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: A30/30
  • Year of manufacture: 2001
  • Retrofitted: 2013
  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet

Technical features

Dimensions

  • Table dimensions: 3.500 x 1.100 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 3.000 mm
  • Y axis traverse: 1.200 mm
  • Z axis traverse: 1.000 mm

Milling head

  • Head type: Universal U40
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 3.000 rpm
  • Spindle power: 29,6 kW

Feedrates

  • Feedrate: 2 - 5.000 mm/min
  • X/Y,Z Rapid feedrate: 15.000 / 10.000 mm/min

Weight and dimensions

  • Maximum weight on table: 8.000 Kg
  • Machine weight: 22.000 Kg
  • Machine dimensions: 7.700 x 4.467 x 2.900 mm

Accesories

  • EC Guarding
  • Electronic handwheel: HR-410

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
