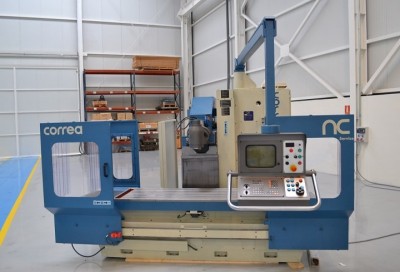

Milling machine CORREA CF17 - 9685506

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF17
  • Year of manufacture: 1998

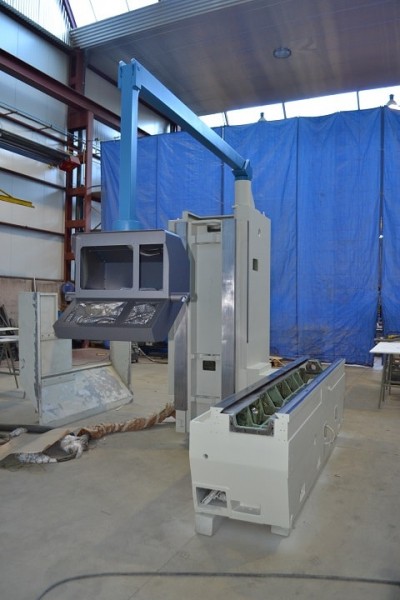

  • Retrofitted: 2018
  • Numerical control: HEIDENHAIN TNC-360
Download technical data sheet

Technical features

Dimensions

  • Table dimensions: 2000 x 700 mm
  • Number of T slots: 6
  • T slots dimensions: 18 mm

Traverses of axis

  • X axis traverse: 1800 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

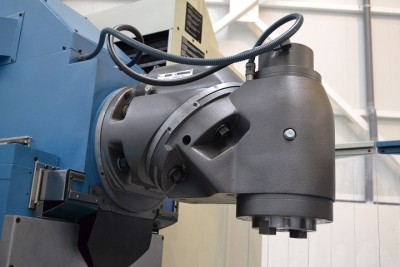

Milling head

  • Head type: Universal manual (U22)
  • Tool clamping system: Hydraulic
  • Taper nose: A50 (DIN 69871)
  • Speed range: 20 - 3000 r.p.m.
  • Spindle power: 17 kW

Feedrates

  • Feedrate: 5 - 5000 mm/min
  • Rapid feedrate: 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 3500 Kg
  • Machine weight: 9000 Kg
  • Machine dimensions: 4886 x 3064 x 2417 mm

Accesories

  • Electronic handwheel: HR-130
  • Guarding

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
