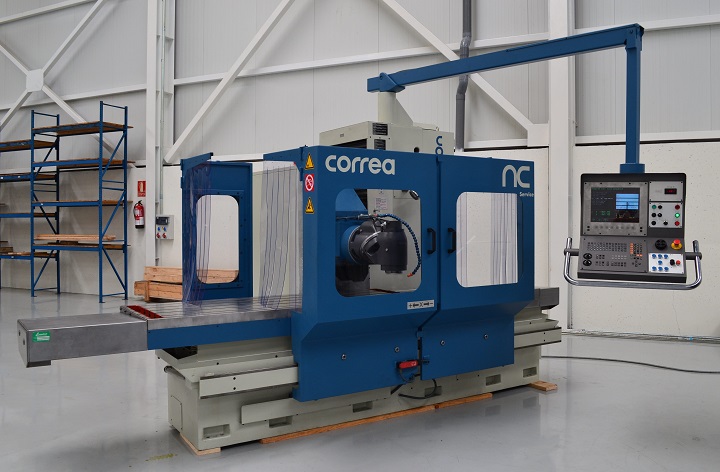

Bed type milling machine CORREA CF17D - 968667

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF17D
  • Year of manufacture: 2000
  • Retrofitted: 2019

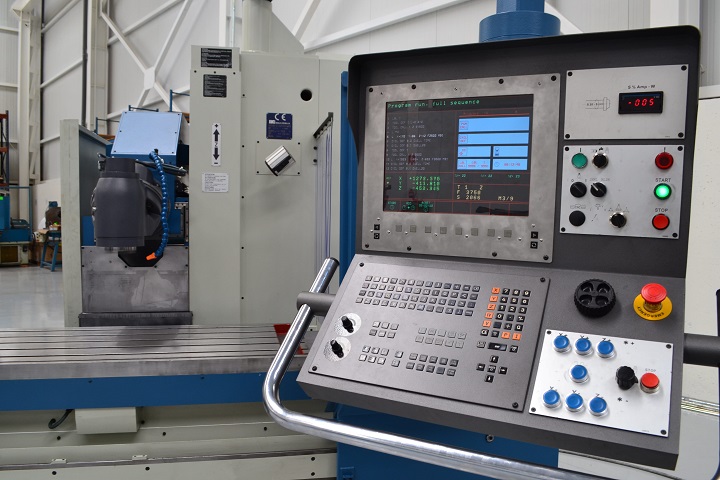

  • Numerical control: HEIDENHAIN TNC-410
Download technical data sheet View video

Technical features

Dimensions

  • Table dimensions: 2.000 x 700 mm
  • Number of T slots: 6
  • T slots dimensions: 18 mm

Traverses of axis

  • X axis traverse: 2.000 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

Milling head

  • Head type: Universal manual (U22)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN2080)
  • Speed range: 20 - 3000 rpm
  • Spindle power: 17 kW

Feedrates

  • Feedrate: 5 - 5000 mm/min
  • Rapid feedrate: 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 3500 Kg
  • Machine weight: 9000 Kg
  • Machine dimensions: 5265 x 2900 x 2760 mm

Accesories

  • Electronic handwheel: HR-130
  • Guarding

Sales conditions

  • Sale price (Ex Work): On request
View all technical features
