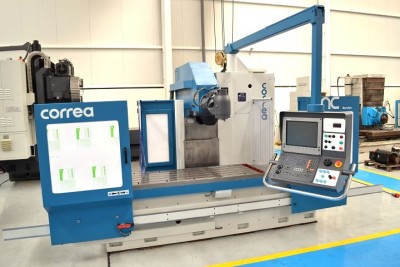

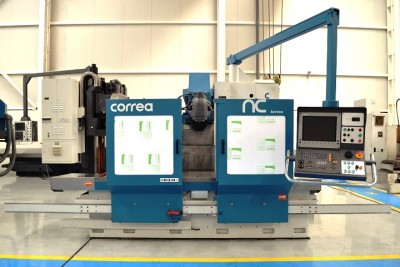

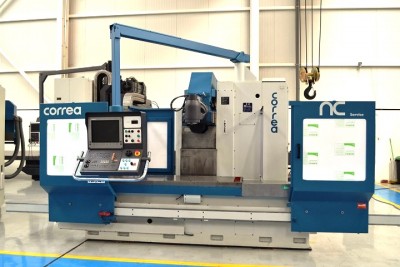

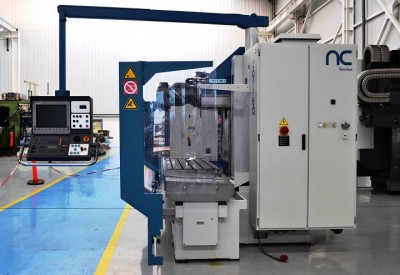

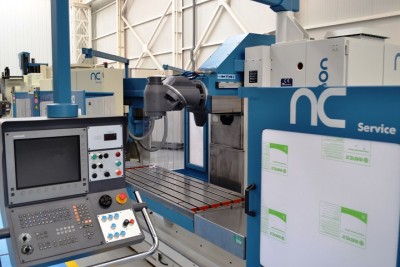

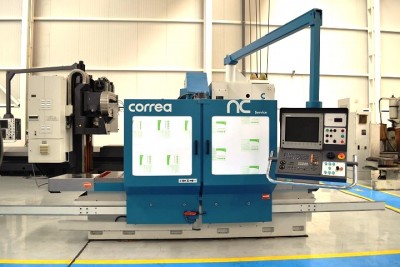

Bed type milling machine CORREA CF17D - 968732

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF17D
  • Year of manufacture: 2001
  • Retrofitted: 2020

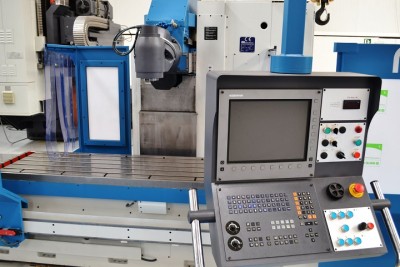

  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet

Second-hand bed type CORREA CF17D milling machine with Heidenhain TNC426, ideal for workshops that require small parts’ quality machining.

Refurbished CNC milling machine for sale here. With reliability and guarantee.

Technical features

Dimensions

  • Table dimensions: 2000 x 700 mm
  • Number of slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2000 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

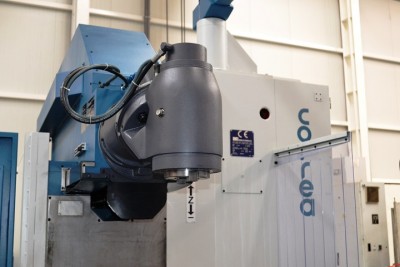

Milling head

  • Head type: Universal manual (U22)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO-50 - DIN2080
  • Speed range: 3000 r.p.m.
  • Spindle power: 17 kW

Feedrates

  • Feedrate: 5 - 5000 mm/min
  • Rapid federate (X / Y, Z):  12000 mm/min

Weight and dimensions

  • Max Weight on table: 3500 kg
  • Machine weight: 9000 kg
  • Machine dimensions: 5265 x 3250 x 2760 mm

Accesories

  • Guarding
  • Electronic handwheel: HR-130
  • Coolant: External

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
