Milling machine CORREA CF22/20 - 9670409

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF22/20
  • Year of manufacture: 1997
  • Retrofitted: 2024
  • Numerical control: HEIDENHAIN TNC426
Download technical data sheet

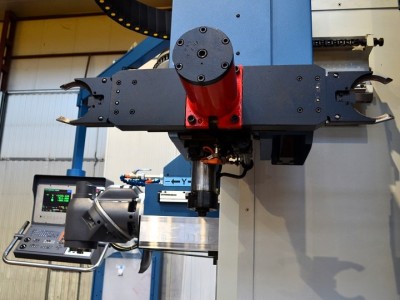

Bed type CNC NICOLAS CORREA CF22/20 milling machine, with excellent accuracy and machining performance after its full mechanical refurbishment process.

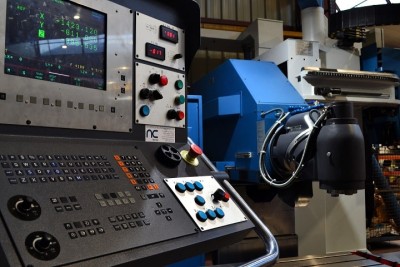

Featuring 2 meters in bed, manual milling head and HEIDENHAIN TNC-426, it also has an automatic tool changer system which makes it a high versatile solution for your machining.

With the guarantee of NICOLAS CORREA milling machines.

Technical features

Dimensions

  • Table dimensions: 2000 x 700 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2000 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

Milling head

  • Head type: Universal manual (U22)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
  • Speed range: 20 - 4000 rpm
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 5000 mm/min
  • Rapid feedrate: 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 3500 kg
  • Machine weight approx.: 9000 kg
  • Machine dimensions approx.: 5265 x 3250 x 2760 mm

Accesories

  • External coolant
  • Automatic tool changer: ATC-30
  • Electronic handwheel: HR-130
  • Guarding

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
