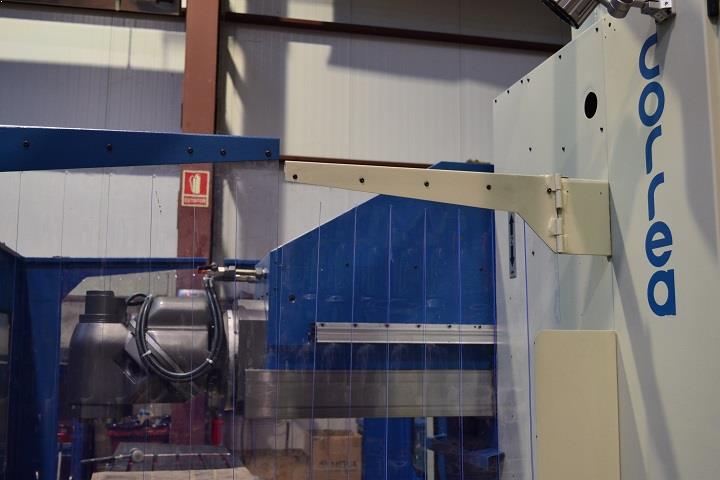

Milling machine CORREA CF22/25 Plus

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF22/25 Plus
  • Year of manufacture: 1999
  • Retrofitted: 2014
  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet

Technical features

Dimensions

  • Table dimensions: 2.500 x 700 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2.500 mm
  • Y axis traverse: 800 mm
  • Z axis traverse: 800 mm

Milling head

  • Head type: Universal manual or DM
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 DIN 69871
  • Speed range: 20 - 4.000 r.p.m.
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 5 - 5.000 mm/min
  • Rapid feedrate: 12.000 mm/min

Weight and dimensions

  • Maximum weight on table: 4.000 Kg
  • Machine weight: 9.500 Kg
  • Machine dimensions: 6.605 x 3.315 x 2730 mm

Accesories

  • Electronic handwheel: HR-410
  • EC Guarding

Sales conditions

  • Guarantee: 6 months mechanical spare parts
  • Sale price (Ex Work): On request
View all technical features
