Milling machine CORREA CF22/25-PLUS - 967396
SOLD
View all technical features
Type of milling machine
- Type: Bed type
- Brand: Correa
- Model: CF22/25-PLUS
- Year of manufacture: 2001
- Retrofitted: 2020
- Numerical control: HEIDENHAIN TNC-426
Milling machine with fixed bed and mobile table CORREA CF22/25-Plus, with new automatic milling head and internal coolant through spindle. Perfect for small machining workshops.
On sale full refurbished, with excellent machining precision. Guaranteed.
Available for immediate delivery! Visit our Showroom and check its performance!
Technical features
Dimensions
- Table dimensions: 2500 x 700 mm
- Number of slots: 5
- T slots dimensions: 22 mm
Traverses of axis
- X axis traverse: 2500 mm
- Y axis traverse: 800 mm
- Z axis traverse: 800 mm
Milling head

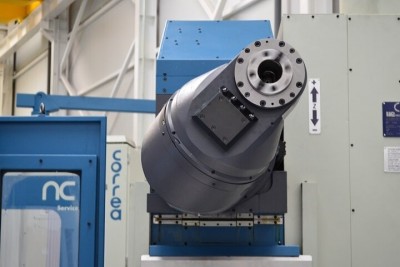

- Head type: New! Universal Auto-indexing UDG (2.5º)
- Tool clamping system: Hydraulic
- Taper nose: ISO 50 (DIN 69871)
- Speed range: 3000 r.p.m.
- Spindle power: 22 kW
Feedrates
- Feedrate: 5 - 5000 mm/min
- Rapid federate (X / Y, Z): 12000 mm/min
Weight and dimensions
- Max Weight on table: 4000 kg
- Machine weight: 9500 kg
- Machine dimensions: 6605 x 3315 x 2730 mm
Accesories
- Electronic handwheel: HR-410
- Guarding
- Coolant: High pressure through spindle & external
Sales conditions
- Warranty: 6 months mechanical parts
- Sale price (Ex Work): On request
Bed type milling machine CORREA CF22/25-PLUS - 967396
Bed type milling machine CORREA CF22/25-PLUS - 967396
Bed type milling machine CORREA CF22/25-PLUS - 967396
Bed type milling machine CORREA CF22/25-PLUS - 967396
Bed type milling machine CORREA CF22/25-PLUS - 967396
Bed type milling machine CORREA CF22/25-PLUS - 967396
Fresadora bancada-fija CORREA CF22/25-PLUS - 967396
Bed type milling machine CORREA CF22/25-PLUS - 967396
Bed type milling machine CORREA CF22/25-PLUS - 967396
