Milling machine CORREA CF22/25-Plus - 967475
SOLD
View all technical features
Type of milling machine
- Type: Bed type
- Brand: Correa
- Model: CF22/25-Plus
- Year of manufacture: 2004
- Retrofitted: 2022
- Numerical control: HEIDENHAIN TNC-530
Used CORREA CF22/25-Plus milling machine, fully mechanically and electronically refurbished. Excellent geometry and accuracy conditions. A total guarantee for your machining.
Refurbished CORREA milling machine with HEIDENHAIN TNC-530. Guaranteed.
Technical features
Dimensions
- Table dimensions: 2500 x 700 mm
- Number of T slots: 5
- T slots dimensions: 22 mm
Traverses of axis
- X axis traverse: 2500 mm
- Y axis traverse: 800 mm
- Z axis traverse: 800 mm
Milling head

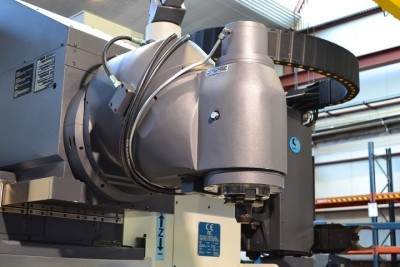

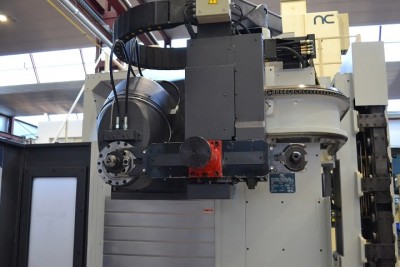

- Head type: Universal Auto-indexing UDG (2.5º)
- Tool clamping system: Hydraulic
- Taper nose: ISO 50 (DIN 69871)
- Speed range: 20 - 3000 rpm
- Spindle power: 22 kW
Feedrates
- Feedrate: 5 - 5000 mm/min
- Rapid feedrate: 12000 mm/min
Weight and dimensions
- Maximum weight on table: 4000 kg
- Machine weight approx.: 11000 kg
- Machine dimensions approx.: 7800 x 3315 x 2730 mm
Accesories
- External coolant
- Automatic tool changer: ATC-30
- Chip conveyor: longitudinal
- Electronic handwheel: NEW! HR-510
- Guarding
Sales conditions
- Warranty: 6 months mechanical parts
- Sale price (Ex Work): On request

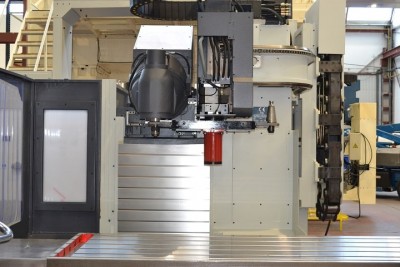

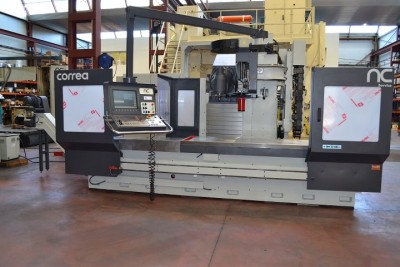

Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Used milling machine CF22/25 retrofitting by NC Service
Are you interested in this milling machine?
Please send your details and we'll contact you as soon as possible.
