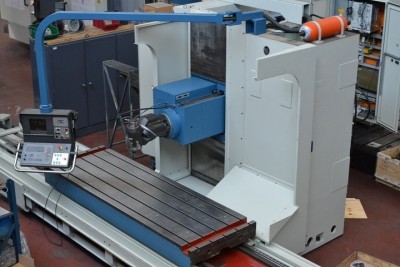

Milling machine CORREA CF25/25 - 2002

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF25/25
  • Year of manufacture: 2002
  • Retrofitted: 2017
  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet View video

Technical features

Dimensions

  • Table dimensions: 2800 x 1000 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2500 mm
  • Y axis traverse: 1000 mm
  • Z axis traverse: 1000 mm

Milling head

  • Head type: Universal manual (U-22)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 – DIN 69871 – BT50
  • Speed range: 20 - 4000 r.p.m.
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 5 - 7000 mm/min
  • Rapid feedrate: 20000 mm/min

Weight and dimensions

  • Maximum weight on table: 6.000 Kg
  • Machine weight: 20.000 Kg
  • Machine dimensions: 7750 x 3100 x 4400 mm

Accesories

  • Electronic handwheel: HR-410
  • Optional: Static tool changer
  • Guarding

Sales conditions

  • Sale price (Ex Work): On request
  • Guaranteed
View all technical features

Are you interested in this milling machine?

Please send your details and we'll contact you as soon as possible.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
