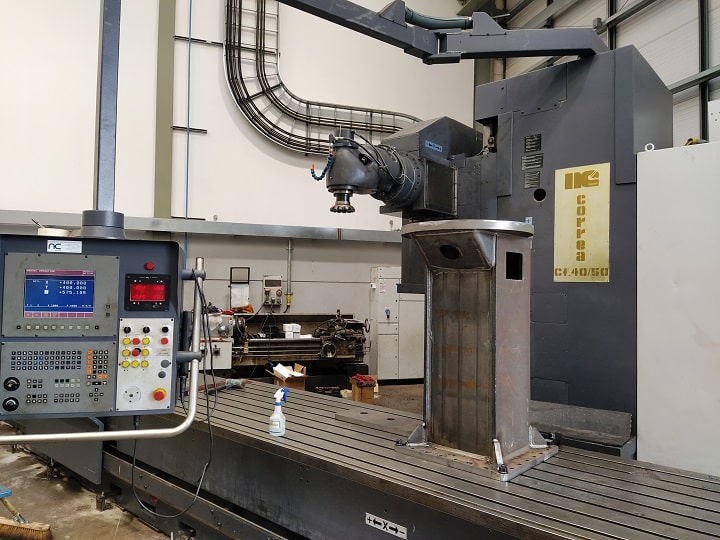

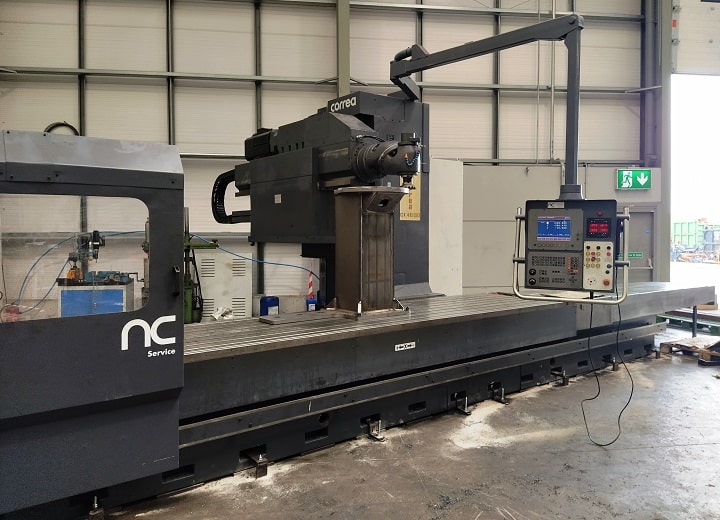

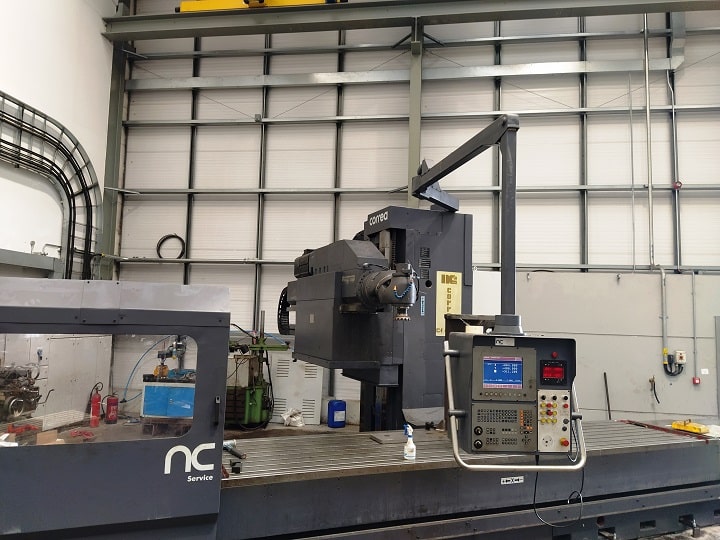

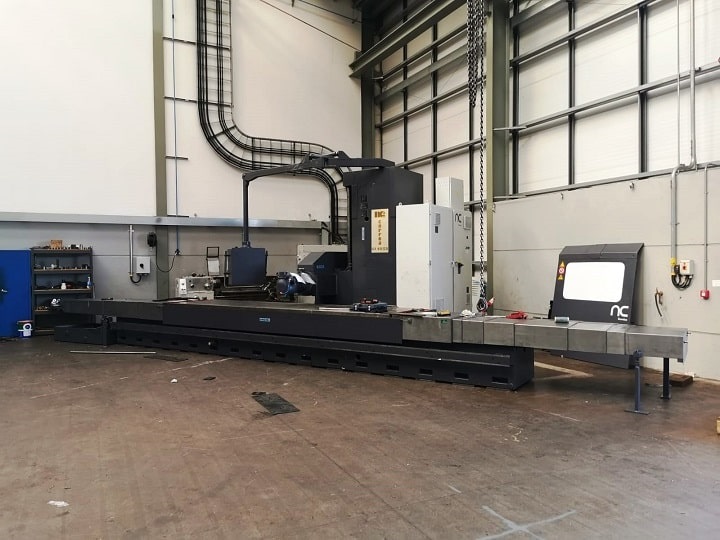

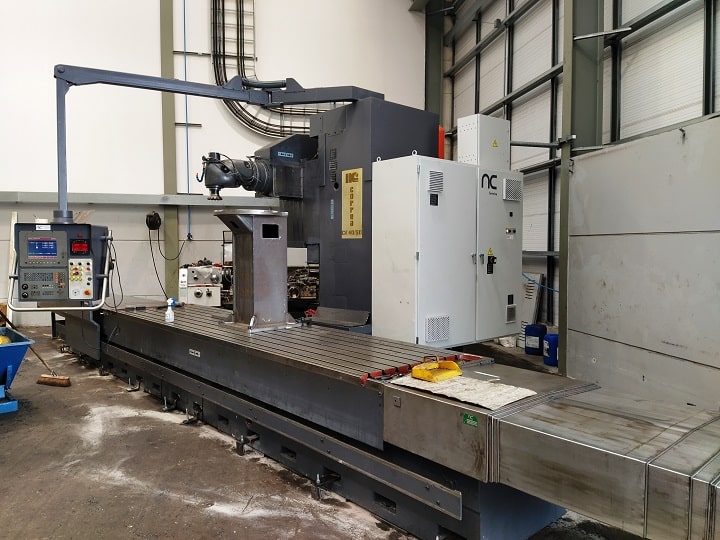

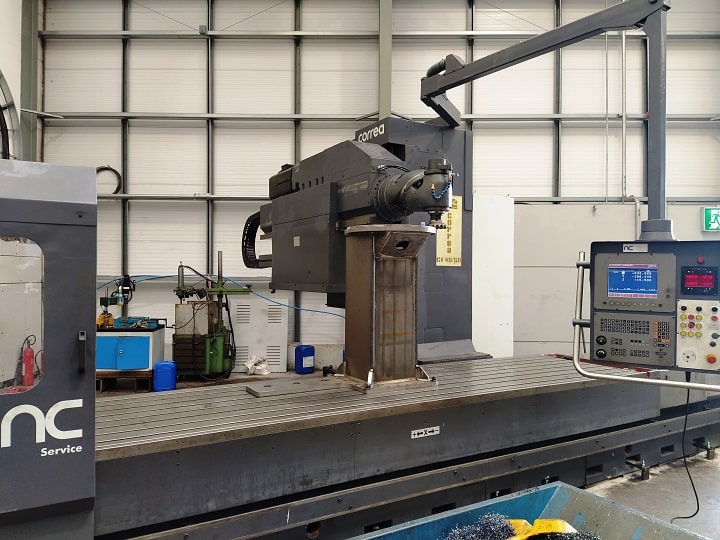

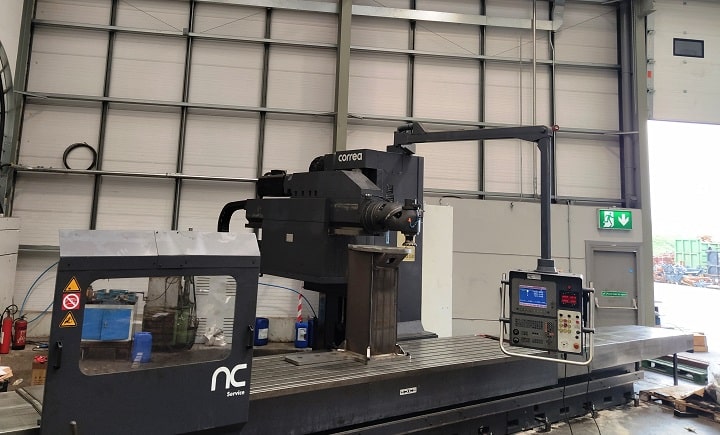

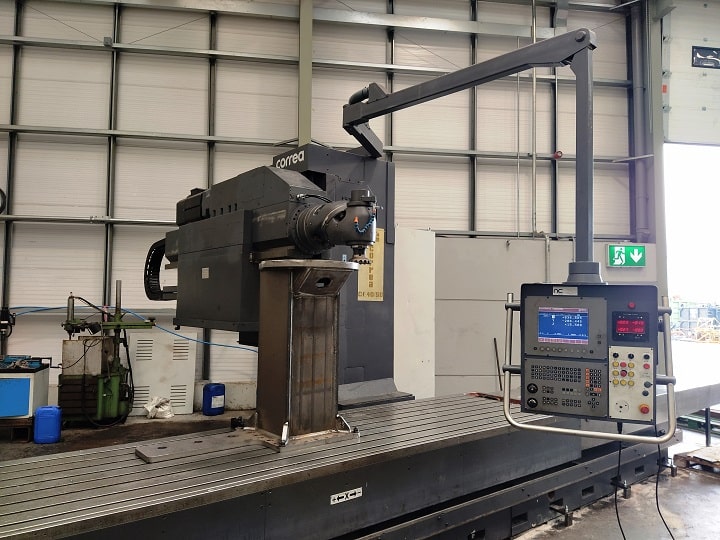

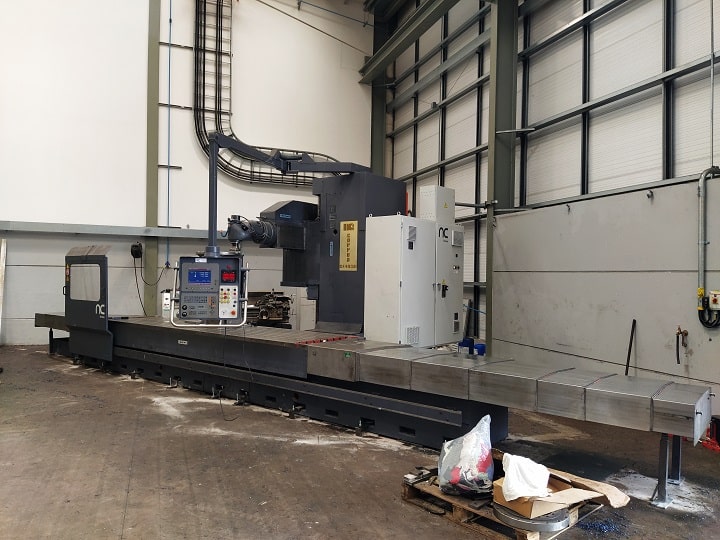

Bed type milling machine CORREA CF40/50 - 7700212

SOLD

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: CF40/50
  • Year of manufacture: 1991

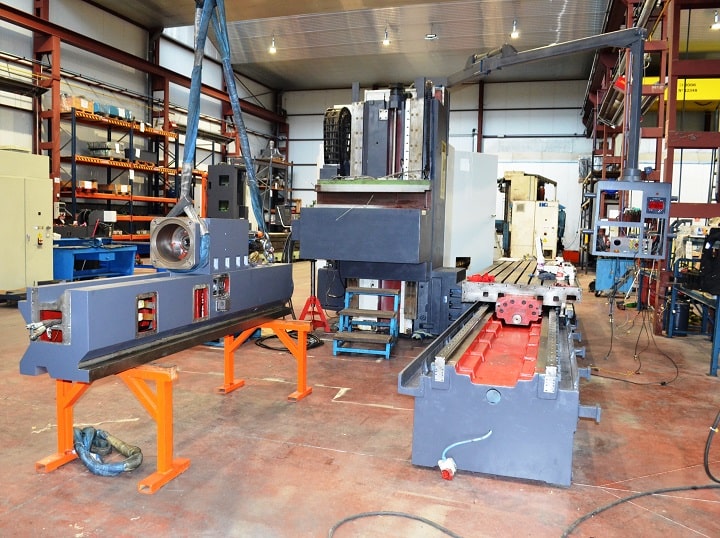

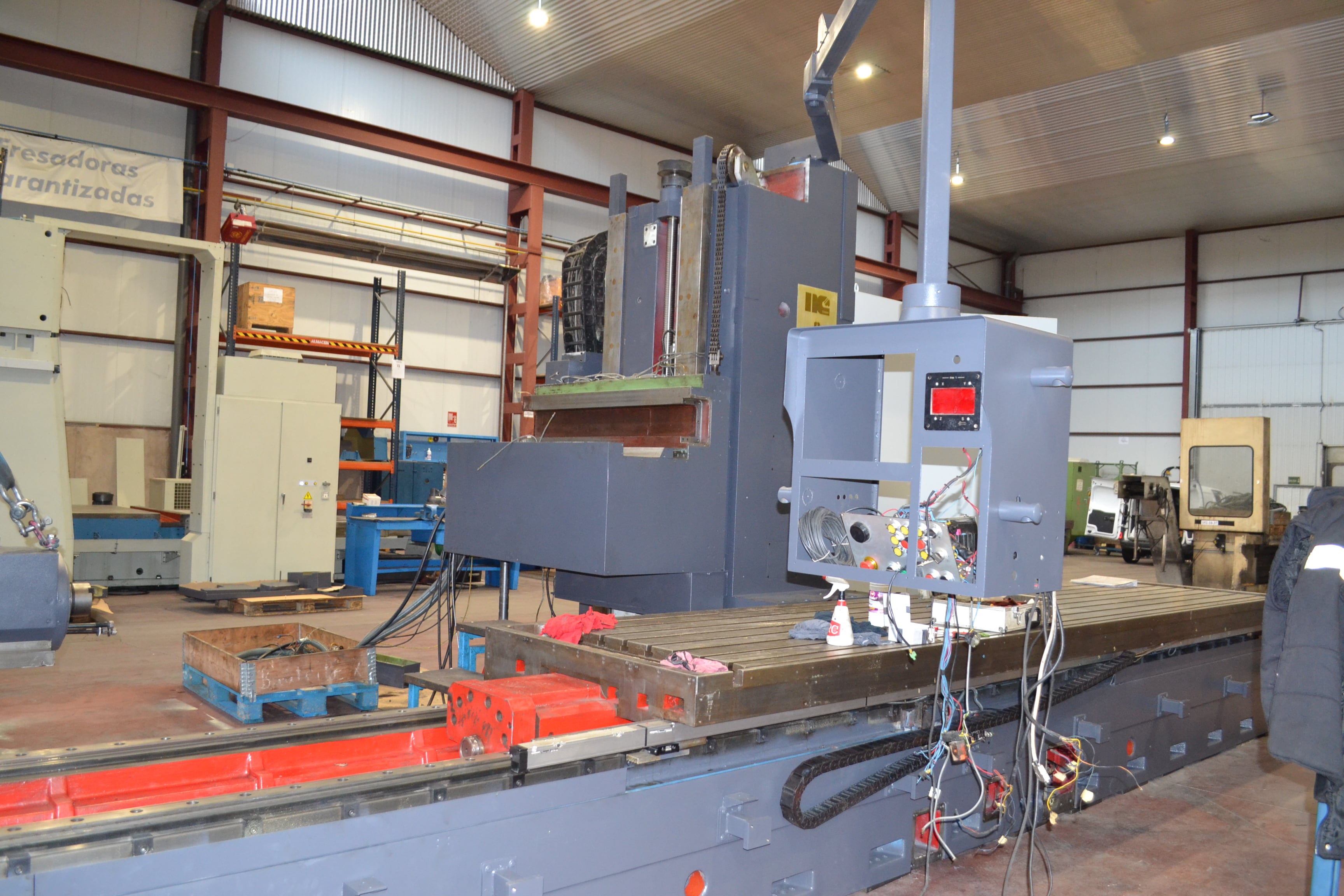

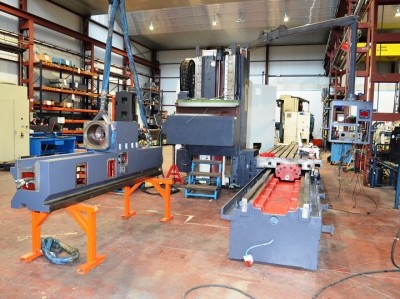

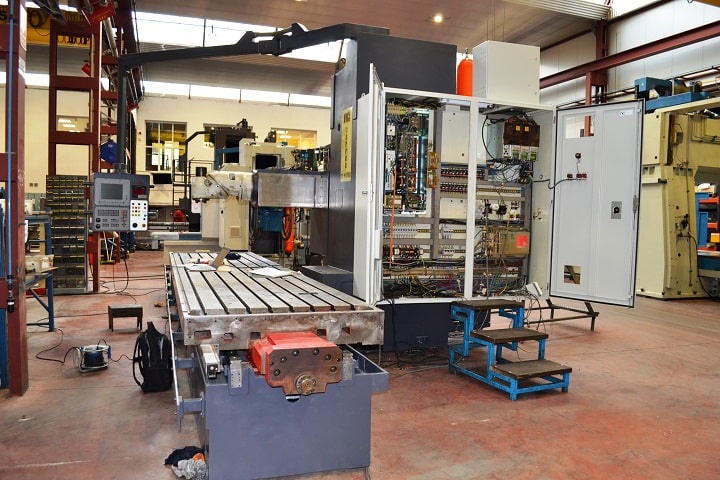

  • Retrofitted: 2020
  • Numerical control: HEIDENHAIN TNC-415 / Option new TNC-320
Download technical data sheet

This CORREA CF40/50 milling machine, with linear ways and recirculating roller packs mounted slides in axes (X-Z), achieves the highest dynamic performances for mechanizing big-sized parts.

The option of retrofitting with the installation of a new automatic milling head and a new control unit HEIDENHAIN TNC-320, makes it a fully updated alternative for a customer demanding the same quality as always of CNC CORREA milling machines, with the most updated performances.

Technical features

Dimensions

  • Table dimensions: 5000 x 1100 mm
  • Number of slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 5000 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 1500 mm

Milling head

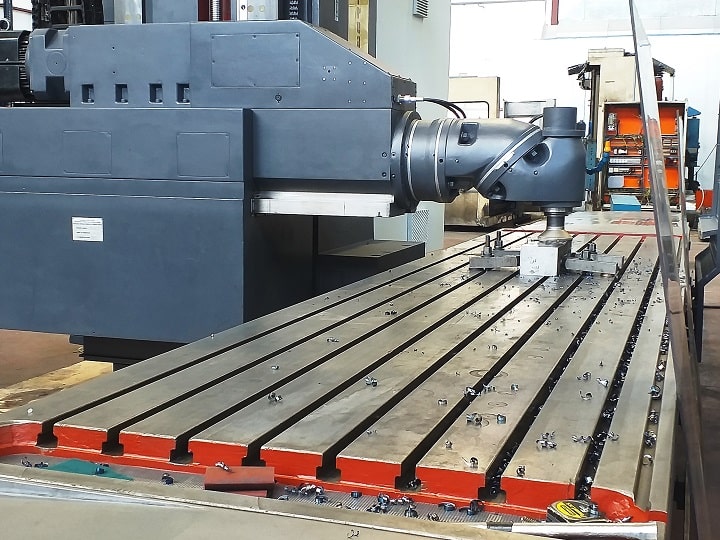

  • Head type: Universal manual / Option: New! Universal Auto-indexing UDG (2.5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO50
  • Speed range: 20 - 2500 r.p.m.
  • Spindle power: 30 kW

Feedrates

  • Feedrate: 1 - 5000 mm/min
  • Rapid federate (X / Y, Z):  15000 mm/min

Weight and dimensions

  • Max Weight on table: 12000 kg
  • Machine weight: 27000 kg
  • Machine dimensions: 11100 x 5200 x 3600 mm

Accesories

  • Electronic handwheel:  HR-410
  • Guarding

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
