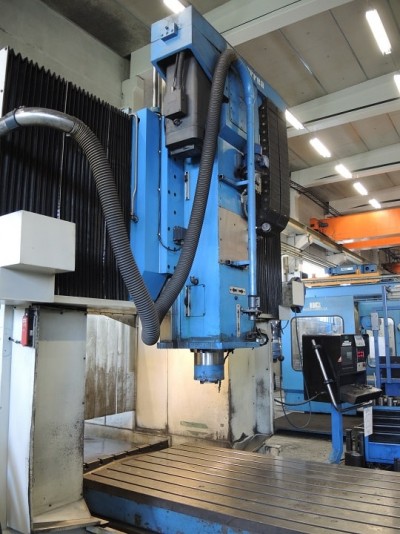

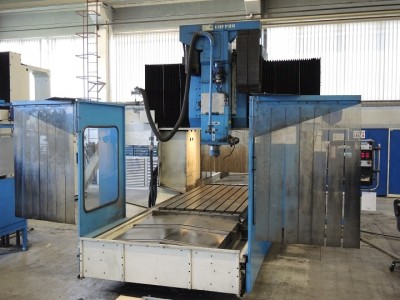

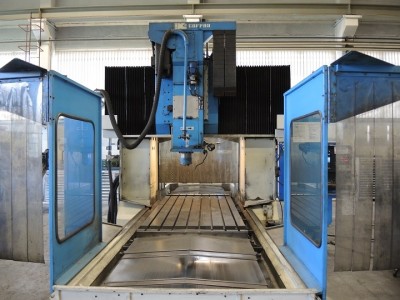

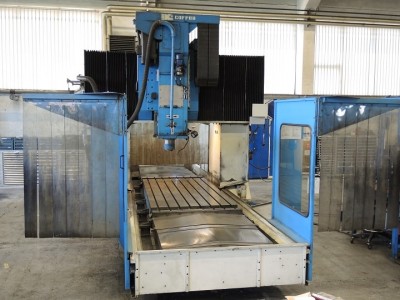

Bridge milling machine CORREA FP30/30 - 8900205

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: FP30/30

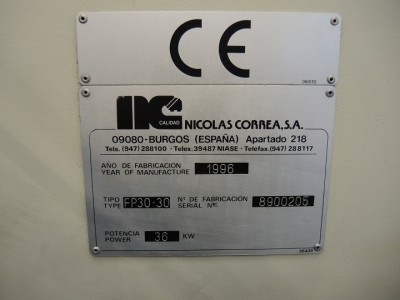

  • Year of manufacture: 1996
  • Retrofitted: 2023
  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet

Retrofitting of used CORREA FP30/30 milling machine. Guaranteed!

This model of milling machine CORREA FP, offers an extraordinary reliability and ruggedness, without detracting its excellent dynamic performance. A versatil machining solution to successfully meet the demands of a wide spectrum of applications.

Technical features

Dimensions

  • Table dimensions: 3000 x 1250 mm
  • Number of T slots: 8
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2500 mm
  • Y axis traverse: 1800 mm
  • Distance between columns: 1680 mm
  • Z axis traverse: 800 mm

Milling head

  • Head type: Standard vertical spindle
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 2000 r.p.m.
  • Spindle power: 22 kW

Feedrates

  • Feedrate: 2 - 5000 mm/min
  • Rapid feedrate (X / Y,Z): 15000 / 12000 mm/min

Weight and dimensions

  • Max Weight on table: 10000 kg
  • Machine weight: 21500 kg
  • Machine dimensions: 7300 x 2690 x 3400 mm

Accesories

  • Guarding: Yes
  • Coolant: External
  • Electronic handwheel: HR-330

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features

Are you interested in this milling machine?

Please send your details and we'll contact you as soon as possible.
