CORREA FP50/50 - 892156

SOLD

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: FP50/50
  • Year of manufacture: 2003
  • Retrofitted: 2022
  • Numerical control: HEIDENHAIN TNC-530
Download technical data sheet

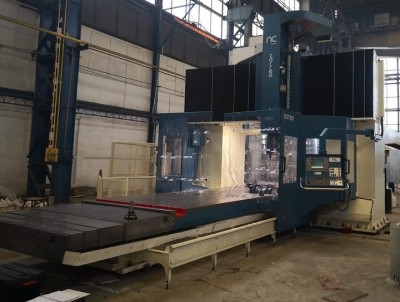

This occasion CNC CORREA FP50/50 milling machine, featuring 5 meters in its longitudinal traverse and more than 3 meters between columns, is a perfect combination between accuracy, rigidity and dynamic performance. Also with auto-indexing differential milling head (UAD), spindle range of 6000 rpm and control unit HEIDENHAIN TNC-i530.

Fully retrofitted second hand milling machine. Sold with guarantees.

Technical features

Dimensions

  • Table dimensions: 5000 x 2000 mm
  • Number of T slots: 13
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 5000 mm
  • Y axis traverse: 3800 mm
  • Distance between columns: 3100 mm
  • Z axis traverse: 1250 mm

Milling head

  • Auto-indexing differential head (UAD - every 0.1º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO50
  • Speed range: 6000 rpm
  • Spindle power: 27 kW

Feedrates

  • Rapid feedrate (X / Y,Z): 7000 / 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 25000 Kg
  • Machine weight approximate: 56000 Kg
  • Machine dimensions approximate: 13200 x 5850 x 6015 mm

Accesories

  • Guarding
  • Internal coolant through spindle
  • Automatic tool changer: ATC30
  • Tool clamping foot pedal.
  • Electronic handwheel: HR-410

Sales conditions

  • Guarantee: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
