CNC Milling machine CORREA FP50/50 - 892177

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: FP50/50
  • Year of manufacture: 2004
  • Retrofitted: 2025

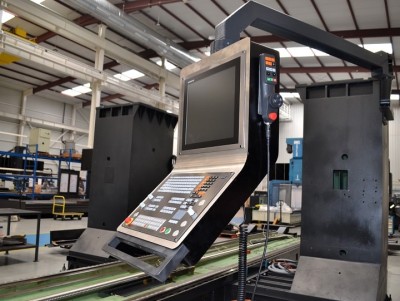

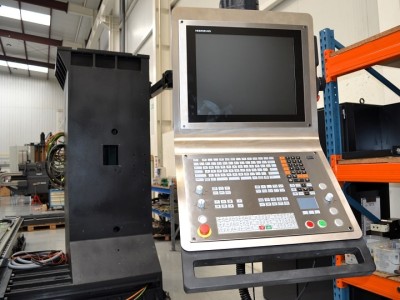

  • Numerical control: NUEVO/NEW HEIDENHAIN TNC-i640
Download technical data sheet

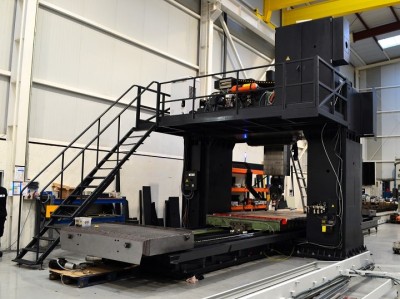

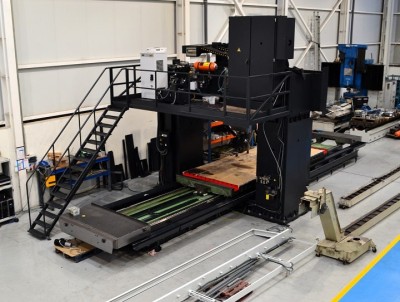

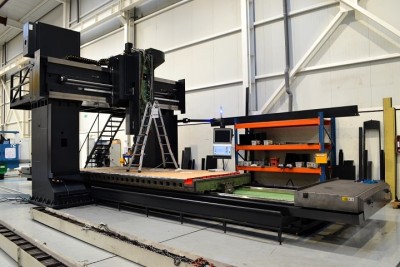

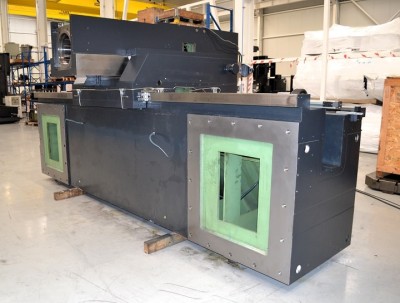

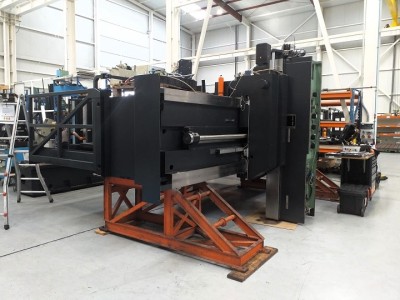

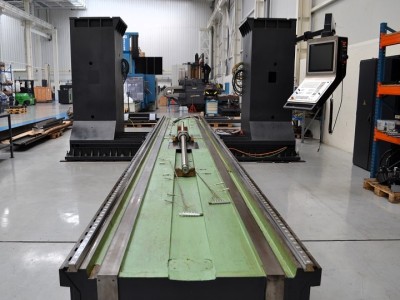

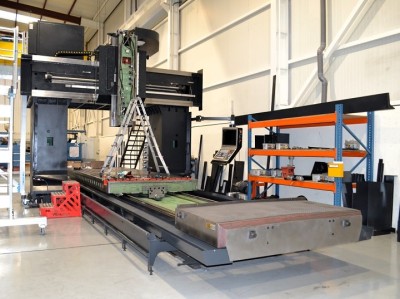

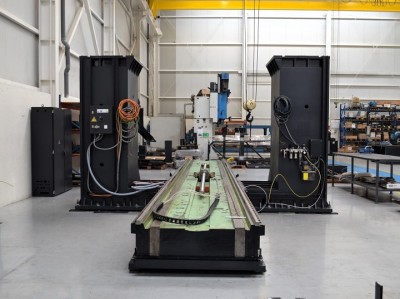

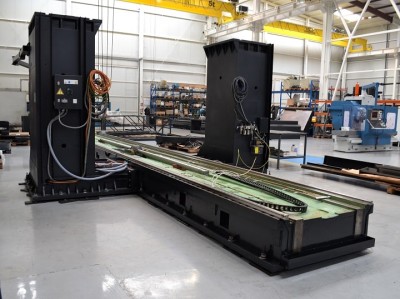

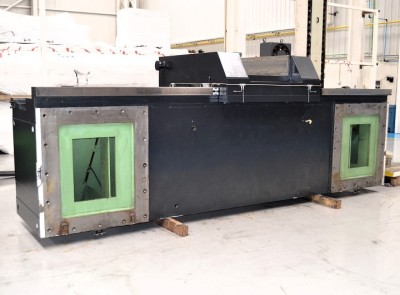

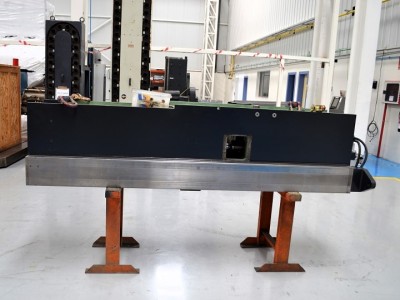

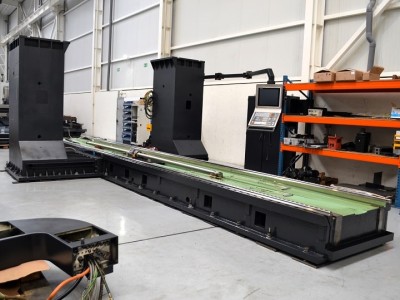

CORREA FP50/50 milling machine under a complete mechanical retrofitting and the installation of a new numerical control HEIDENHAIN TNC-i640.

With 5 meters of longitudinal travel and more than 3 meters of transversal traverse. Featuring an auto-indexing differential milling head type UAD up to 6,000 rpm. and the option of installing a new automatic tool changer.

Precise machining with excellent dynamic performance with the guarantee of the retrofitting process of NC Service, part of CORREA GROUP and specialist in CORREA milling machines refurbishment.

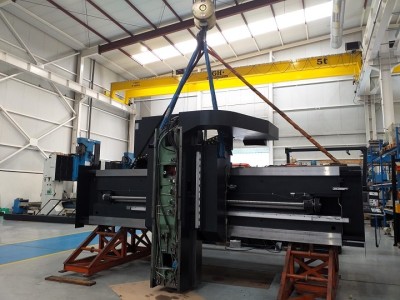

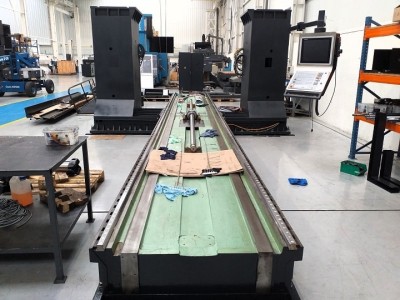

Fully mechanically retrofitted milling machine with installation of a new HEIDENHAIN control unit.

Technical features

Dimensions

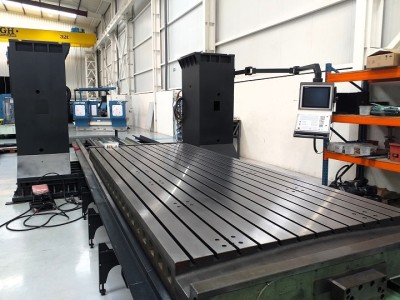

  • Table dimensions: 5600 x 2000 mm
  • Maximum weight on table: 25000 kg
  • Number of T slots: 13
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 5000 mm
  • Y axis traverse: 3250 mm
  • Z axis traverse: 1000 mm
  • Vertical capacity (VC): 450 / 1450 mm
  • Distance between columns: 2700 mm

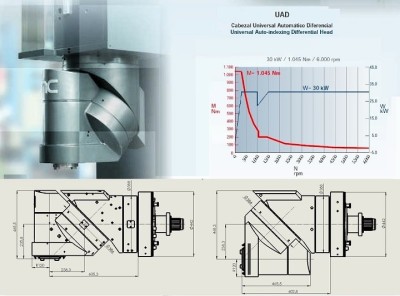

Milling head

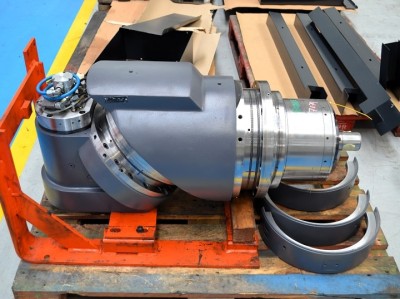

  • Auto-indexing differential head (UAD - 0,1º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO50 (DIN69871)  /  Pull stud: DIN69872
  • Speed range: 6000 rpm
  • Spindle power: 30 kW

Feedrates

  • Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min

Weight and dimensions

  • Machine weight approximate: 56000 Kg
  • Machine dimensions approximate: 13200 x 5425 x 5350 mm

Accesories

  • Guarding: 2 sliding doors with a perimetral wire-mesh fence
  • Automatic tool changer: Optional
  • Chip conveyor: 1 transversal hinge type
  • Electronic handwheel: New HR-520
  • Coolant: External & internal high pressure through spindle

Sales conditions

  • Guarantee: 6 months mechanical spare parts
  • Sale price (Ex Work): On request
View all technical features
