Gantry milling machine CORREA FPM60 - 8800901

SOLD

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: FPM60
  • Year of manufacture: 1995
  • Retrofitted: 2022

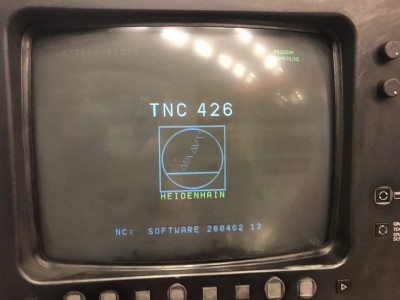

  • Numerical control: HEIDENHAIN TNC-426
Download technical data sheet View video

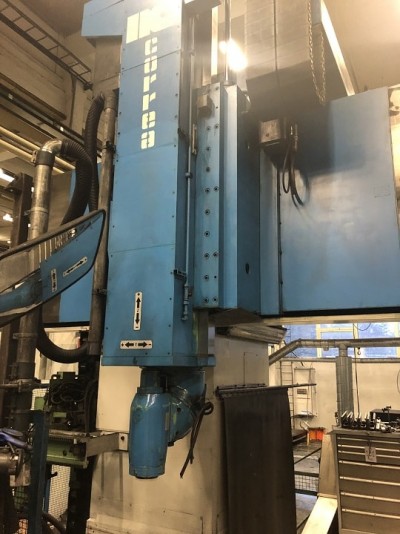

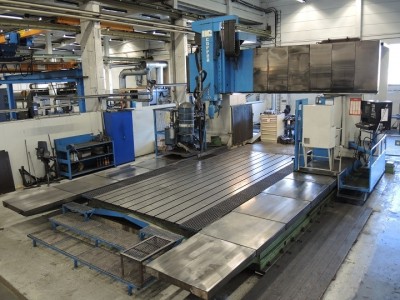

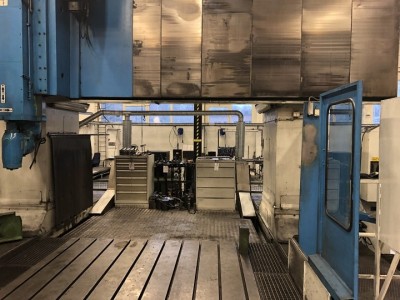

Mechanically refurbished gantry type CORREA FPM60 milling machine, which excellent accuracy in mechaning moderate and big size parts is guaranteed.

The specific properties of the gantry type milling machine, are linked to its great rigidity and accuracy, and its versatility allows this second-hand milling machine to be an optimal solution for covering a wide range of machining applications.

Refurbished milling machine, with auto-indexing milling head and automatic tool changer. With machinnig guarantee!

Technical features

Dimensions

  • Table dimensions: 6000 x 2500 mm
  • Number of T slots: 10
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 6000 mm
  • Y axis traverse: 3800 mm
  • Distance between columns: 3370 mm
  • Z axis traverse: 1000 mm

Milling head

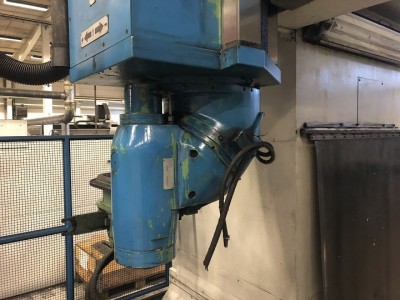

  • Head type: Universal Auto-indexing UDG-40 (3º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50
  • Speed range: 20 - 2000 r.p.m.
  • Spindle power: 30 kW

Feedrates

  • Feedrate: 2 - 5000 mm/min
  • Rapid feedrate (X / Y,Z): 7200 mm/min

Weight and dimensions

  • Max Weight on table: 15000 kg/m2
  • Machine weight: 75000 kg
  • Machine dimensions: 15300 x 6550 x 6180 mm

Accesories

  • Guarding
  • Automatic tool changer: ATC-60
  • Coolant: External
  • 2 longitudinal chip conveyors
  • Electronic handwheel: HR-410

Sales conditions

  • Warranty: 6 months mechanical spare parts
  • Sale price (Ex Work): On request
View all technical features
