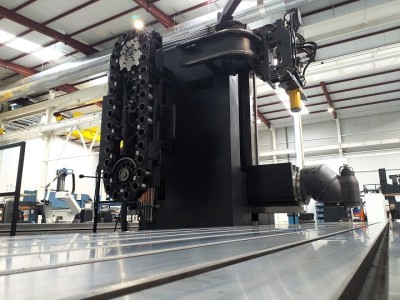

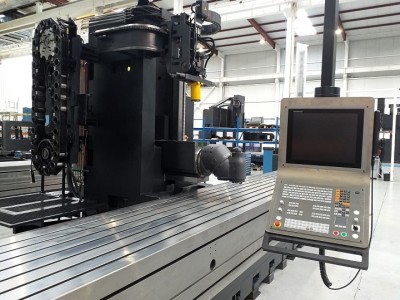

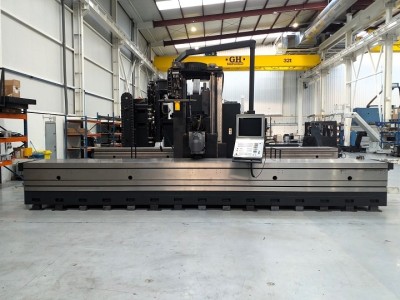

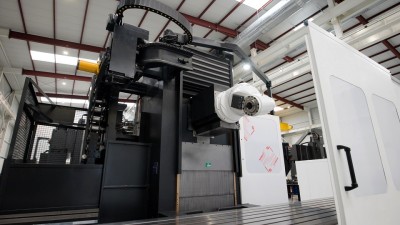

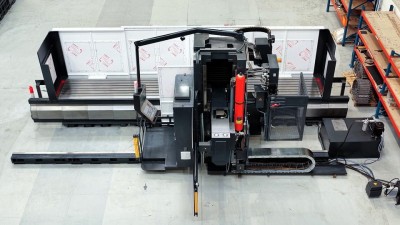

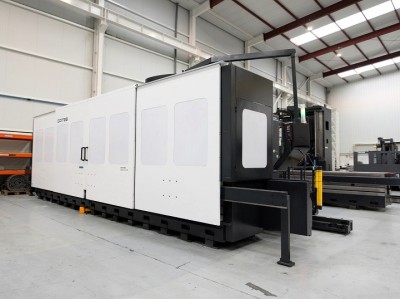

Milling machine CORREA L30/58 - 7901201

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Travelling Column
  • Brand: Correa
  • Model: L30/58
  • Year of manufacture: 1998
  • Retrofitted: 2025
  • Numerical control: NUEVO/NEW HEIDENHAIN TNC-i640
Download technical data sheet

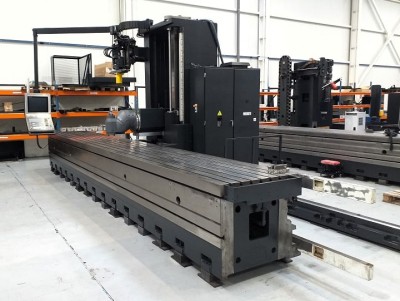

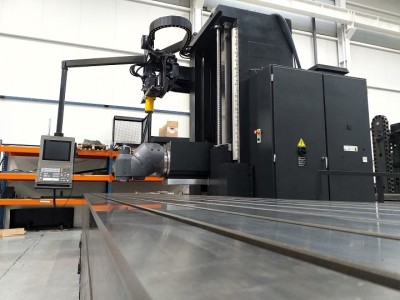

CNC CORREA L30/58 milling machine, which design concept of travelling column allows machining of high-volume and complex parts for molds, dies and other tools. Robustness and quality representative of travelling column CORREA milling machines, guaranteeing maximum reliability and performance.

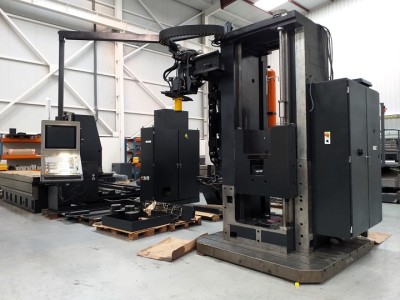

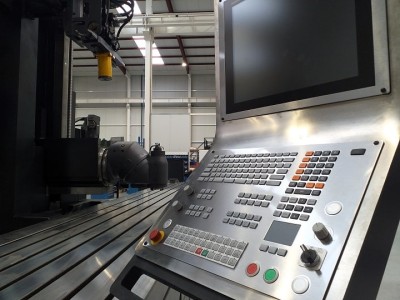

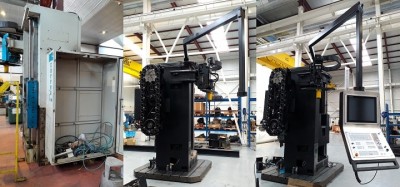

The full retrofitting process by CORREA SERVICE also includes the installation of a new control unit HEIDENHAIN TNC-i640. The result is a milling machine with an excellent machining and efficiency.

This CNC CORREA milling machine also performs an auto-indexing UDG milling head with turning every 2,5º, an automatic tool changer of 30 tools and chip conveyor.

Technical features

Dimensions

  • Table dimensions: 7650 x 1000 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 5850 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 1500 mm

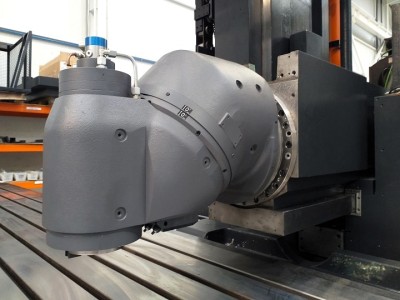

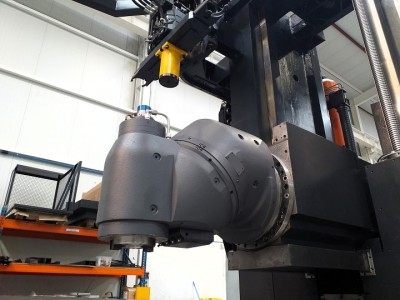

Milling head

  • Head type: Auto-indexing head UDG (every 2,5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872
  • Speed range: 20 - 3000 rpm
  • Spindle power: 30 kW

Feedrates

  • Feedrates: 20 - 5000 mm/min
  • Rapid feedrates (X-Y-Z): 10000 mm/min

Weight and dimensions

  • Maximum weight on table: 25000 kg
  • Machine weight approx.: 31000 kg
  • Machine dimensions approx.: 11590 x 5179 x 3485 mm

Accesories

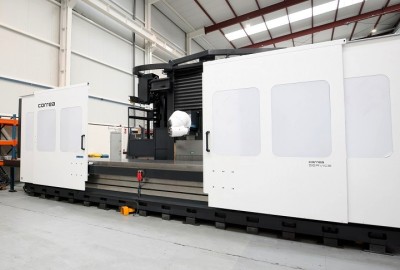

  • Guarding and new perimetral fence
  • Automatic tool changer: ATC-30
  • Longitudinal rear chip conveyor
  • Electronic handwheel: New HR-510
  • External coolant and high pressure through spindle

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
