Milling machine CORREA L30/74 - 7900407

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Travelling Column
  • Brand: Correa
  • Model: L30/74
  • Year of manufacture: 1995
  • Retrofitted: 2025
  • Numerical control: NUEVO/NEW HEIDENHAIN TNC-320
Download technical data sheet

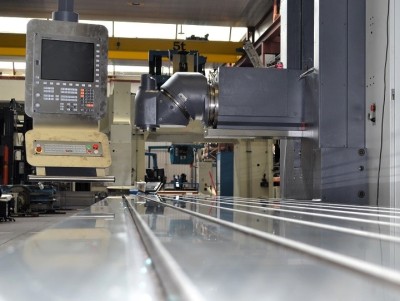

CNC CORREA L30/74 milling machine, fully overhauled by CORREA SERVICE, with the installation of a new TNC HEIDENHAIN TNC-320. It also features an auto-indexing UDG milling head with turning every 2,5º, an automatic tool changer of 50 tools and new longitudinal chip conveyor.

Resulting a CORREA milling machine in excellent machining conditions and an optimum performance. The travelling column design concept allows machining of high-volume and complex parts for molds, dies and other tools. Robustness and quality representative of travelling column CORREA milling machines, guaranteeing maximum reliability and performance.

Technical features

Dimensions

  • Table dimensions: 9180 x 1000 mm
  • Number of T slots: 7
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 7400 mm
  • Y axis traverse: 1200 mm
  • Z axis traverse: 1500 mm

Milling head

  • Head type: Auto-indexing head UDG (every 2,5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872
  • Speed range: 20 - 3000 rpm
  • Spindle power: 22 kW

Feedrates

  • Rapid feedrates (X-Y-Z): 12000 mm/min

Weight and dimensions

  • Maximum weight on table: 30000 kg
  • Machine weight approx.: 34000 kg
  • Machine dimensions approx.: 13950 x 5600 x 3650 mm

Accesories

  • Guarding and new perimetral fence
  • Automatic tool changer: ATC-50
  • New Longitudinal rear chip conveyor
  • Electronic handwheel: New HR-510
  • External coolant and high pressure through spindle

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale conditions: On request
View all technical features
