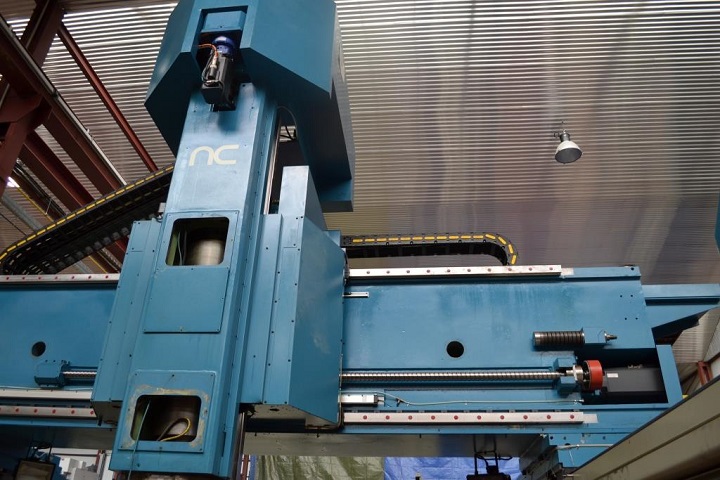

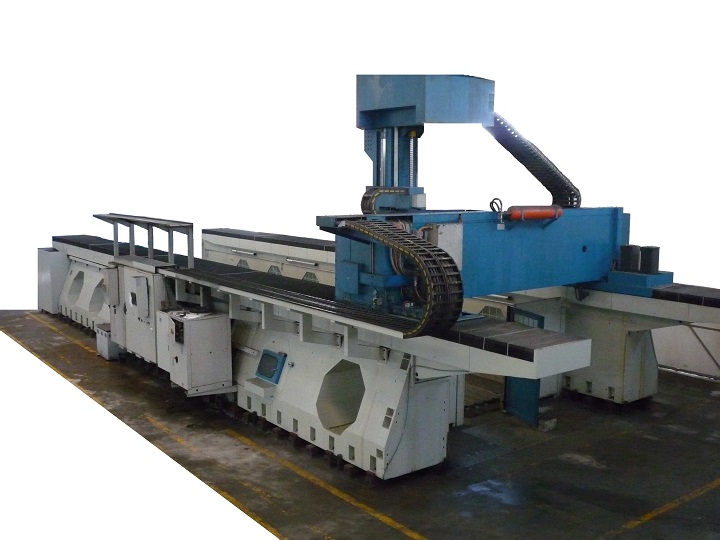

Gantry milling machine CORREA PANTERA

REFURBISHMENT ONGOING

Type of milling machine

  • Type: Bridge type
  • Brand: Correa
  • Model: PANTERA
  • Year of manufacture: 2003
  • Retrofitted: 2024

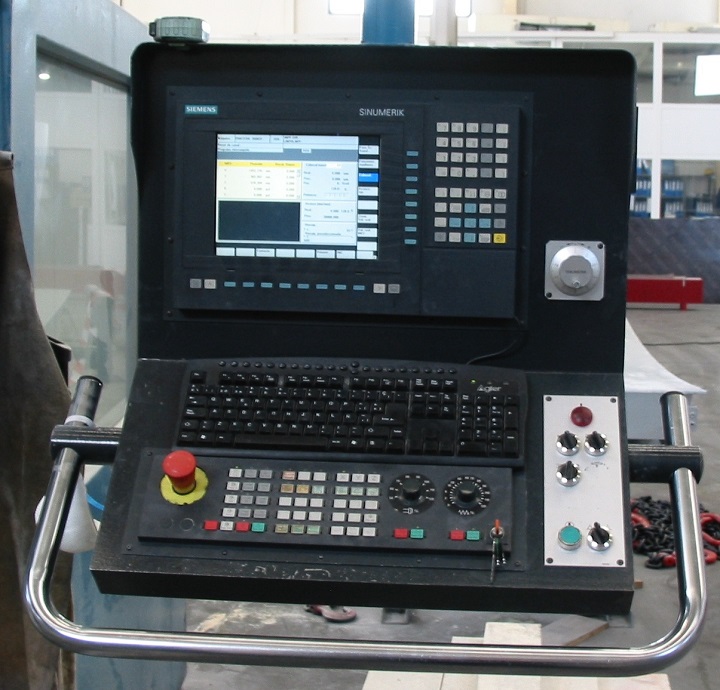

  • Numerical control: SIEMENS 840 D
Download technical data sheet

The model of this CORREA PANTERA offers a hight precision within the gantry milling machine structure. The X traverse of 14 meters makes it an ideal solution for mechanising large parts of die-manufacturing sector and tooling processes.

In addition, also its high dynamic performance and excellent versatility. The high speed milling head becomes an excellent alternative for applications in the aeronautic industry.

Second hand high-speed milling machine. Guaranteed.

Now with a special price!

Technical features

Dimensions

  • Table dimensions: 14.000 x 2.500 mm
  • Number of T slots: 10
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 14.000 mm
  • Y axis traverse: 3.100 mm
  • Distance between columns: 4.417 mm
  • Z axis traverse: 1.200 mm (220 - 1.420 mm)

Milling head

  • Head type: 5 Axis “C5C” Electrospindle 18.000 rpm
  • Tool clamping system: Hydraulic
  • Taper nose: HSK 63
  • Speed range: 18.000 rpm
  • Spindle power: 25 kW

Feedrates

  • Feedrate: 30.000 mm/min
  • Rapid feedrate (X/Y,Z): 30.000 mm/min

Weight and dimensions

  • Maximum weight on table: 15.000 Kg/m2
  • Machine weight: 135.000 Kg
  • Machine dimensions: 15.000 x 8.418 x 6.033 mm

Accesories

  • Guarding: Yes
  • Internal & external coolant
  • Automatic tool changer: 24 tools
  • Electronic handwheel: Yes

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
