Milling machine CORREA PRISMA 25- 967628

COMING SOON

Type of milling machine

  • Type: Bed type
  • Brand: Correa
  • Model: PRISMA25
  • Year of manufacture: 2006
  • Retrofitted: 2024

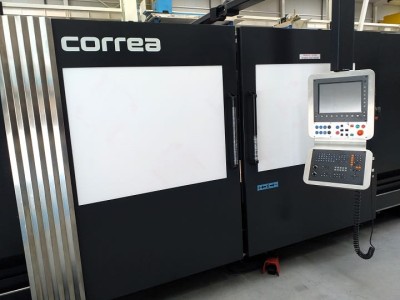

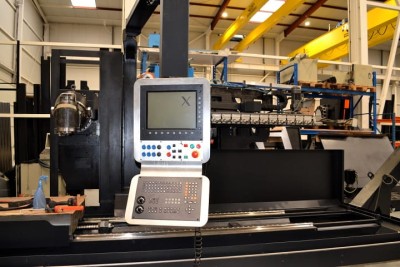

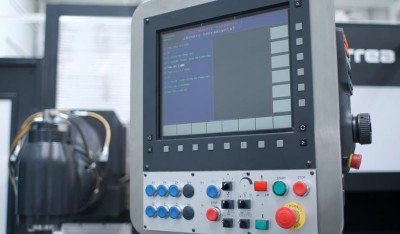

  • Numerical control: HEIDENHAIN TNC-530
Download technical data sheet

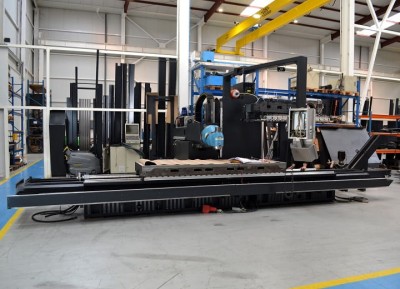

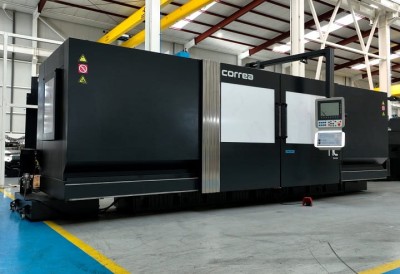

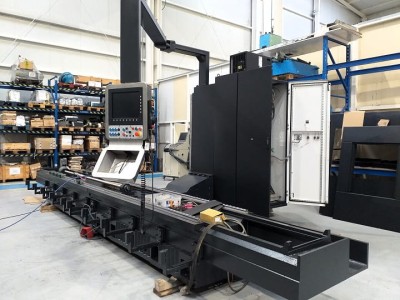

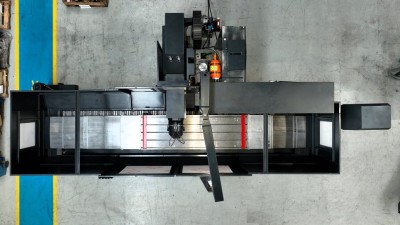

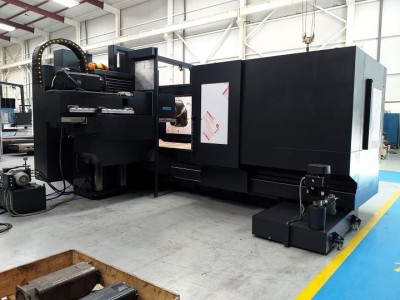

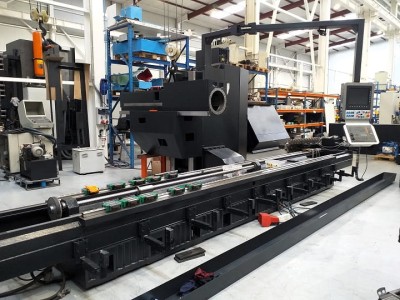

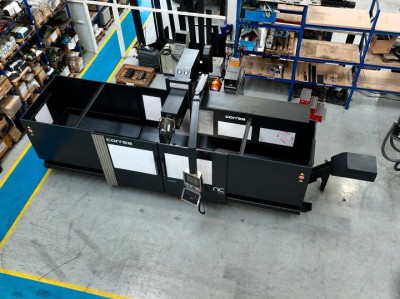

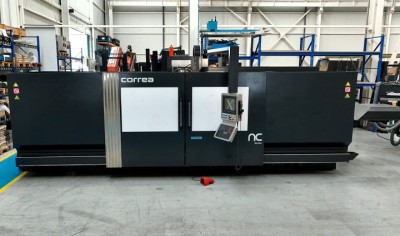

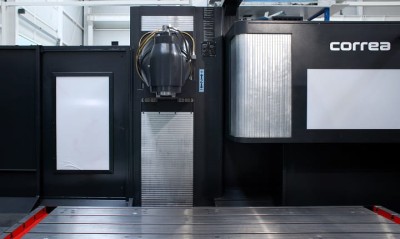

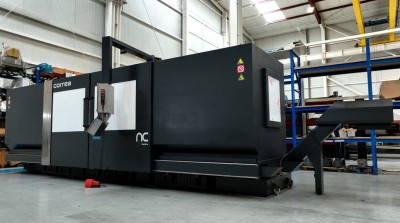

Remanufactured CORREA PRISMA 25 milling machine, with CNC HEIDENHAIN TNC-530, auto-indexing milling head and automatic tool changer. Featuring also a rotary table with tailstock as well as a chip conveyor.

Highly rigid design and versatility in this CORREA milling machine for machining with excellent performance.

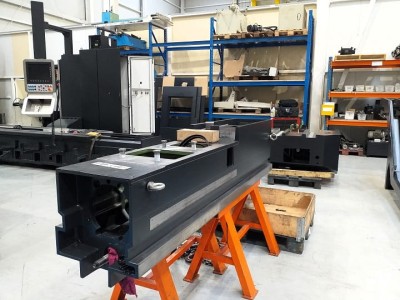

Full refurbishment process by NC Service is a guarantee of a reliability.

Technical features

Dimensions

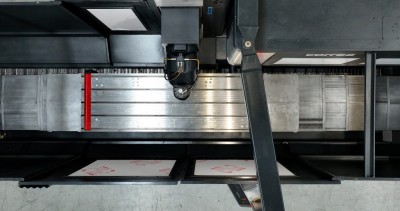

  • Table dimensions: 2800 x 900 mm
  • Number of T slots: 5
  • T slots dimensions: 22 mm

Traverses of axis

  • X axis traverse: 2500 mm
  • Y axis traverse: 1000 mm
  • Z axis traverse: 1000 mm

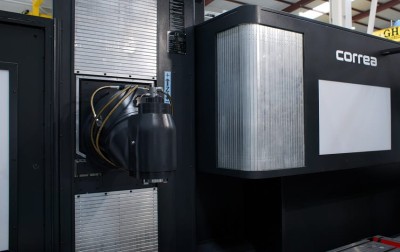

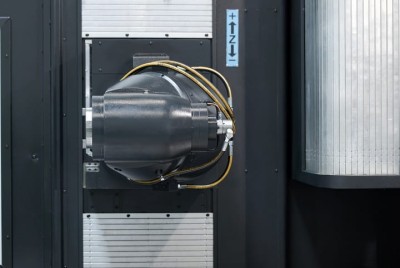

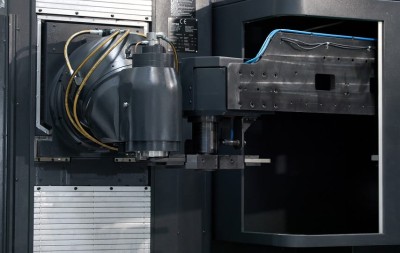

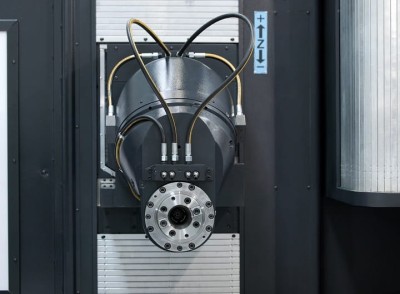

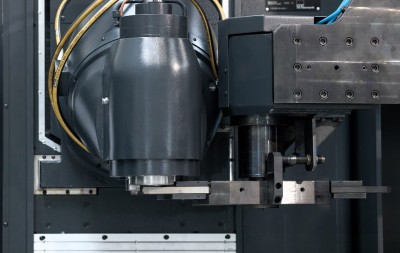

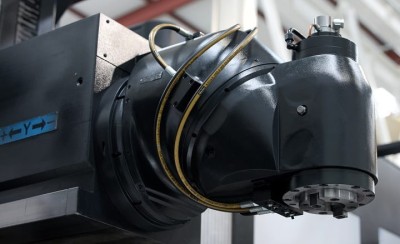

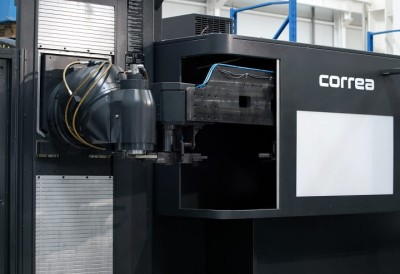

Milling head

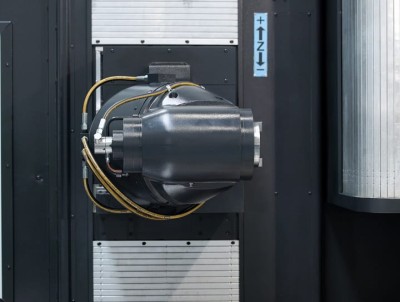

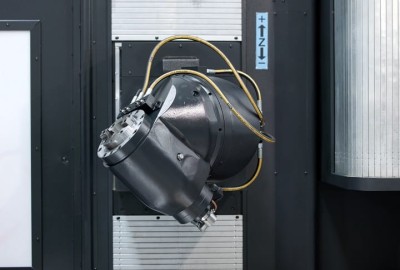

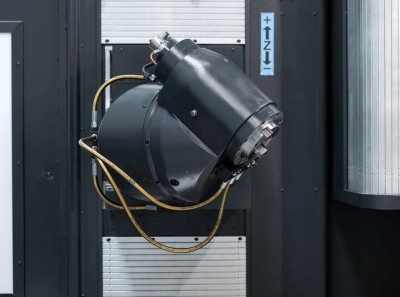

  • Head type: Universal Auto-indexing UDG (2.5º)
  • Tool clamping system: Hydraulic
  • Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
  • Speed range: 20 - 3000 rpm
  • Spindle power: 22 kW

Feedrates

  • Rapid feedrate (X / Y-Z): 20000 mm/min   /   12000 mm/min

Weight and dimensions

  • Maximum weight on table: 4000 kg
  • Machine weight approx.: 14500 kg
  • Machine dimensions approx.: 7367 x 5070 x 2803 mm

Accesories

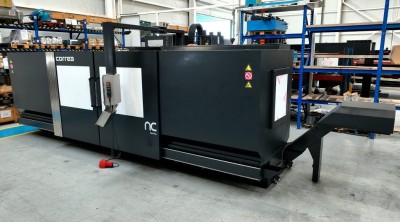

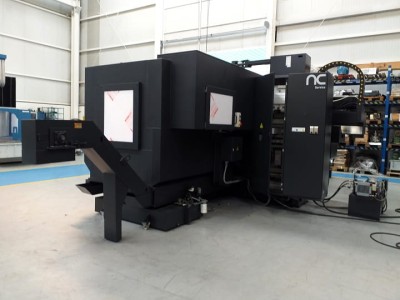

  • Perimetral guarding
  • Automatic tool changer: ATC30

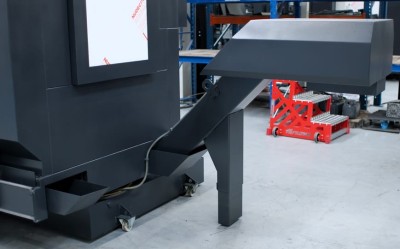

  • Chip conveyor: rear longitudinal
  • Rotary table with tailstock
  • External coolant & high pressure coolant through spindle

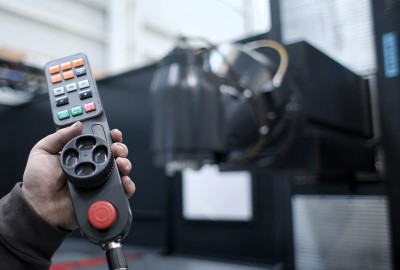

  • Electronic handwheel: HR-420

Sales conditions

  • Warranty: 6 months mechanical parts
  • Sale price (Ex Work): On request
View all technical features
