Milling Machine CORREA SUPRA 120 CAC

Technical features

Traverses of axis

• X axis traverse: 12.000 mm
• Y axis traverse: 1.500 mm
• Z axis traverse: 4.000 mm

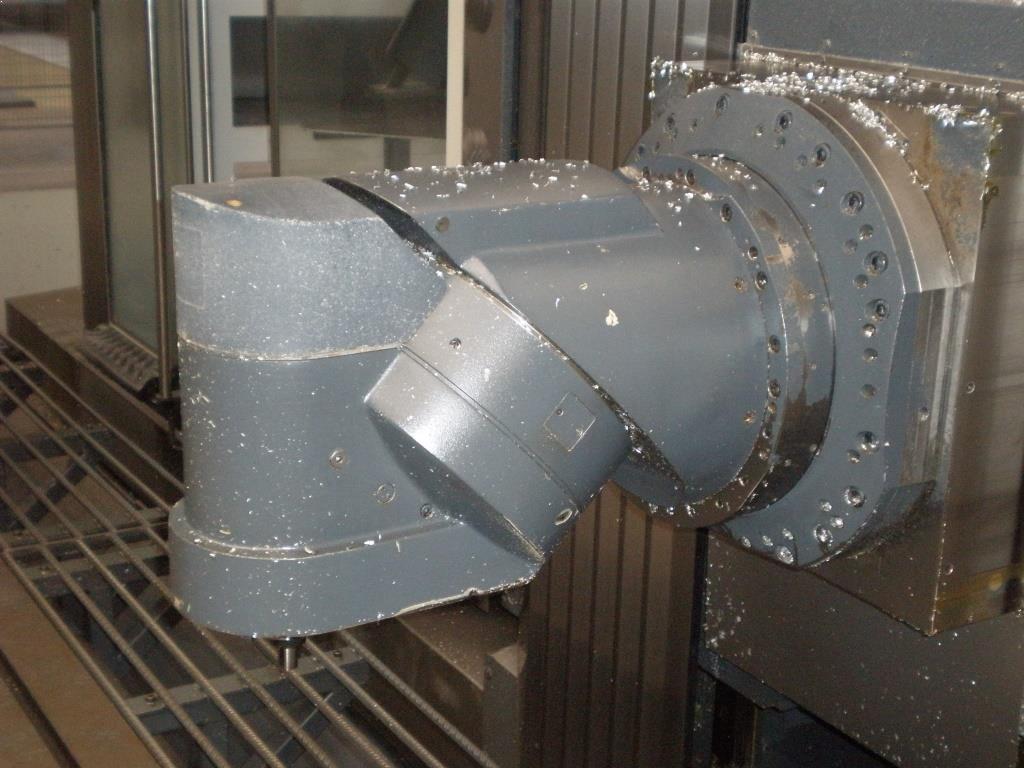

Milling head

• Head type: UAD Universal Auto-Indexing, 0,1º resolution. Long front head 600 mm ISO50
• Changing head: D’Andrea UT8/800 S
• Tool clamping system: Hydraulic
• Taper nose: ISO 50
• Speed range: 0 - 7.000 rpm
• Spindle power: 35 kW / 1.300 Nm

Feedrates

• Maximum working feedrates: 30 m/min
• Maximum acceleration: 1.0 – 1.5 m/s2

Weight and dimensions

• Table dimensions 7.500 x 3.000 mm
• Maximum weight on table: 15.000 Kg/m2
• Machine dimensions: 17.200 x 6.425 x 7.450 mm

Accesories

• Rotary table: Demmeler DRTLTS2500
  • Size: 4.000 x 3.000 mm
  • Travel: 2.000 mm
  • Load: 60 T
• Remote Handheld panel with pulse generator: HBG410
• Automatic Head Changer
• Automatic tool changer: ATC-60
• Chips removal equipment
• Coolant through the spindle: 30 bar / 40 l/min
• Coolant system M.Q.L.: M.Q.L. Lubrix 750
• Centrifugal coolant filter: Mahle
• Shuttle EC Guarding
• Operator’s platform
