Milling machine ZAYER 30KCU 8000AR - 77213

SOLD

Type of milling machine

  • Type: Travelling Column
  • Brand: Zayer
  • Model: 30KCU 8000AR
  • Year of manufacture: 2006
  • Numerical control: SIEMENS 840D
Download technical data sheet

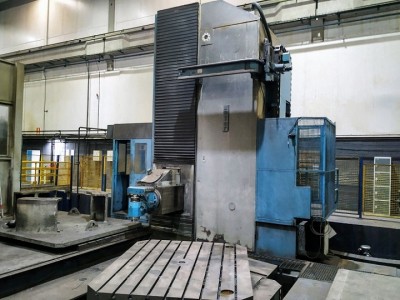

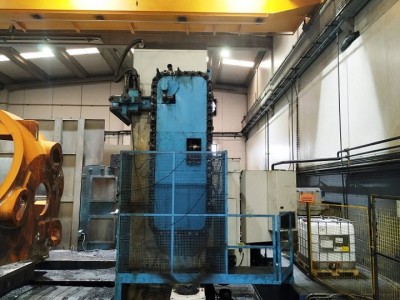

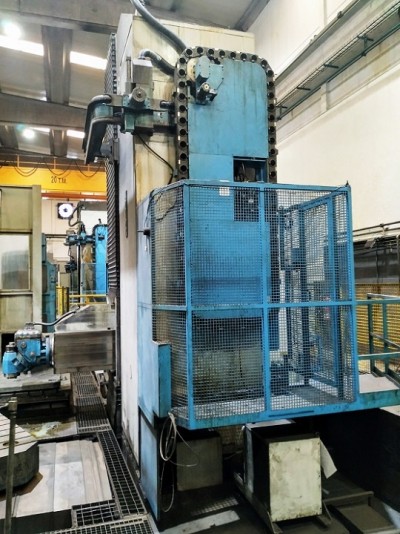

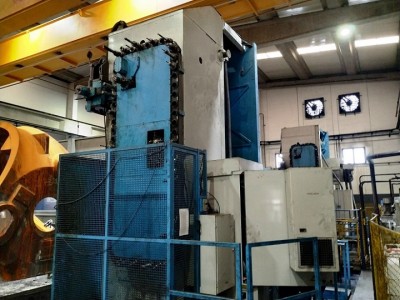

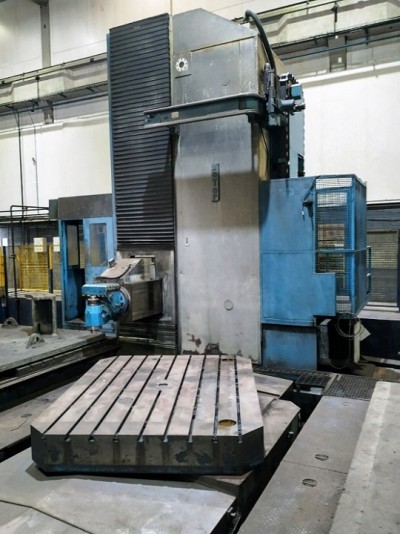

Used ZAYER 30KCU 8000 milling machine. With vertical traverse of 3,5 meters and longitudinal cross of 8 meters. Excellent machining option for big pieces.

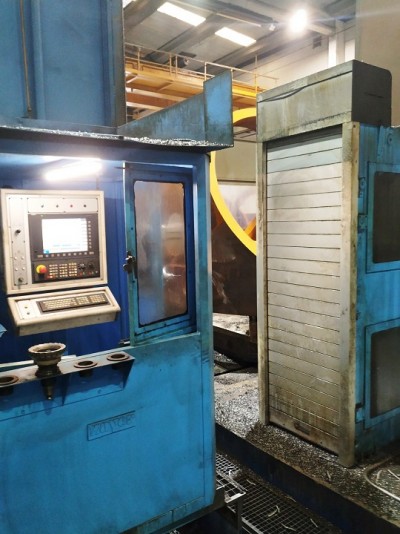

Second hand ZAYER milling machine, with control unit SIEMENS 840D, universal automatic millesimal milling head, automatic 60 tools changer and rotary table of 2,5 x 2 meters.

Technical features

Dimensions

  • Stolle table dimensions:3500 x 2000 mm
  • Number of T slots: 9
  • T slots dimensions: 28 mm

Traverses of axis

  • X axis traverse: 8020 mm
  • Y axis traverse: 1252 mm
  • Z axis traverse: 3503 mm

Milling head

  • Head type: Universal Millesimal Automatic
  • Tool clamping system: Hydraulic
  • Taper nose: AD50 (DIN 69871)
  • Speed range: 35 - 3000 rpm
  • Spindle power: 37 kW

Feedrates

  • Feedrate: 6 - 10000 mm/min
  • Rapid feedrate: 20000 mm/min

Weight and dimensions

  • Maximum weight on table: 12000 kg

Accesories

  • Rotary table:
    • Dimensions: 2500 x 2000 mm
    • Weight on table: 25000 Kg
    • Longitudinal travel: 2000 mm
    • Feedrate: 1 - 6000 mm/min
    • Rapid feedrate: 10000 mm/min
    • Advande of turn: 0,04/0,5 min-1
    • Rapid advance of turn: 2,5 min-1
  • Automatic tool changer: ATC-60

Sales conditions

  • In working conditions. No warranty.
  • Sale price (Ex Work): On request
View all technical features
