The best second hand Milling Machines with performance of a new one.

Use our filters and select the best brands: Correa or Anayak.

Also select your business sector and contact us by our web form which you could find at the bottom of this page if you still cannot find the Milling Machine searched.

You have filtered by:

CORREA FP50/50 milling machine - NC Service CORREA FP50/50 milling machine - NC Service CORREA FP50/50 milling machine - NC Service CORREA FP50/50 milling machine - NC Service CORREA FP50/50 milling machine - NC Service

CORREA FP50/50 - 892177

  • REFURBISHMENT ONGOING

CNC CORREA milling machine fully refurbished


New control unit HEIDENHAIN TNC-i640.
Travels (X/Y/Z): 5000 / 3250 / 1000 mm.
Vertical capacity (VC): 450 / 1450 mm
Distance between columns: 2435 mm.
Universal Auto-indexing differential head (UAD) with 6000 rpm.
New electronic handwheel HR-520.
Transversal hinge type chip conveyor.
Option of installing a new automatic tool changer.
External and high pressure through spindle coolant.
Guarding with 2 sliding doors and a perimetral wire-mesh fence.



Retrofitting of milling machines with excellent machining and accuracy


Find out more details!

Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service Used NICOLAS CORREA milling machines - NC Service

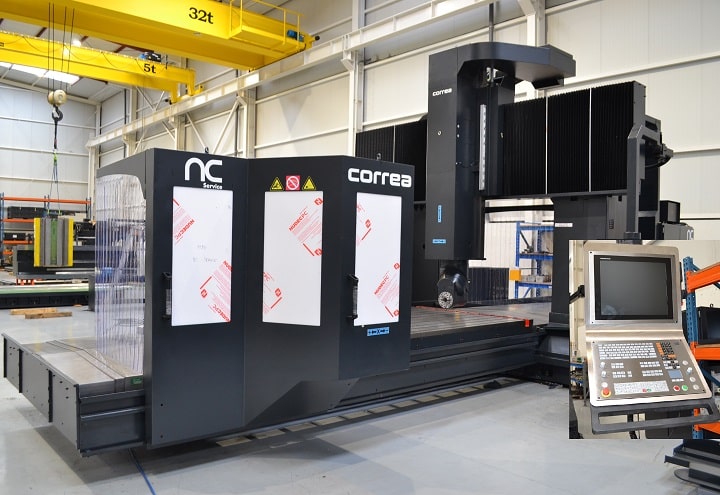

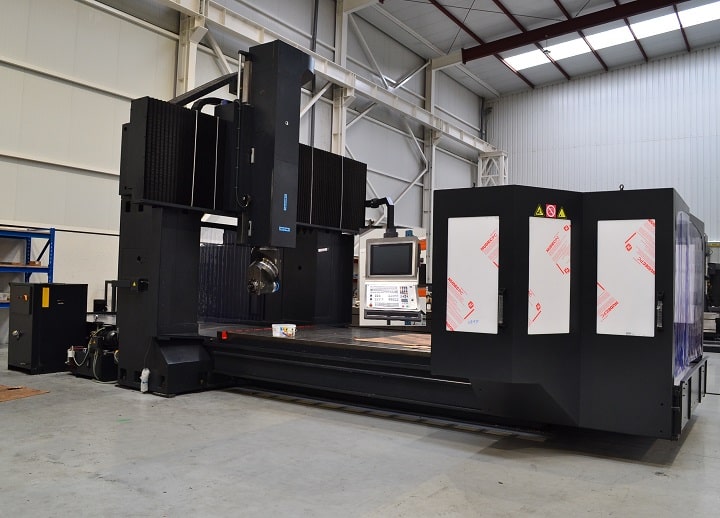

CORREA FP40/40 - 895235

  • REFURBISHMENT ONGOING

Second hand CNC CORREA milling machine fully refurbished

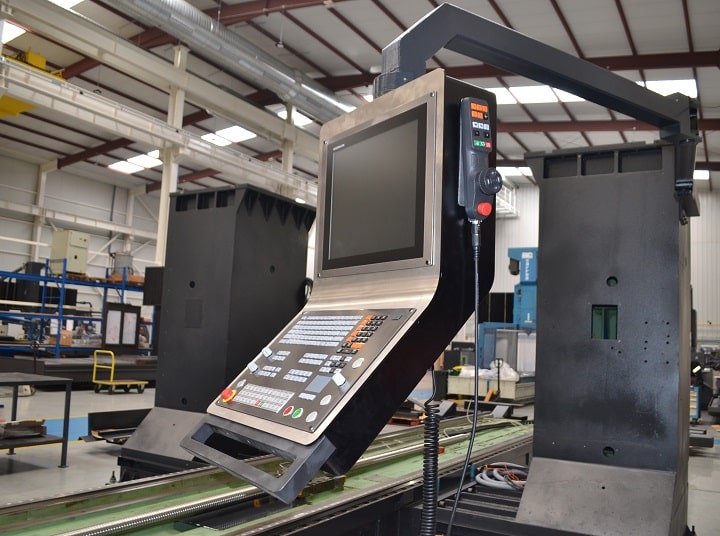

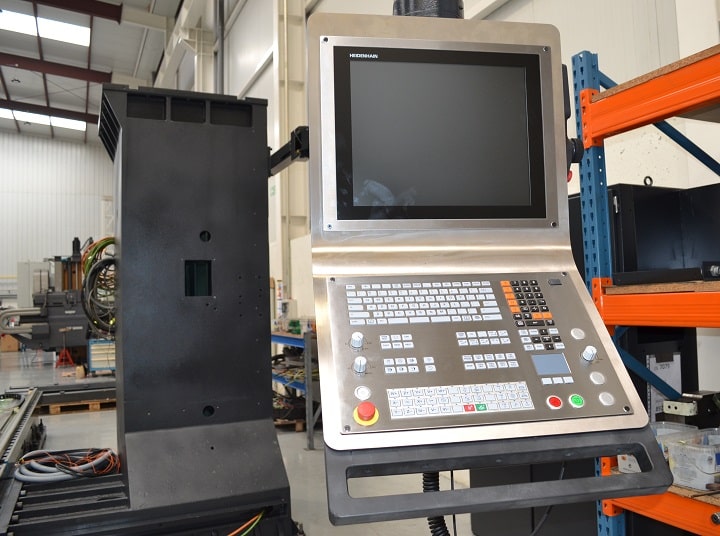

Control unit HEIDENHAIN TNC-i530.
Travels (X/Y/Z): 4000 / 3000 / 1000 mm.
Distance between columns: 2435 mm.

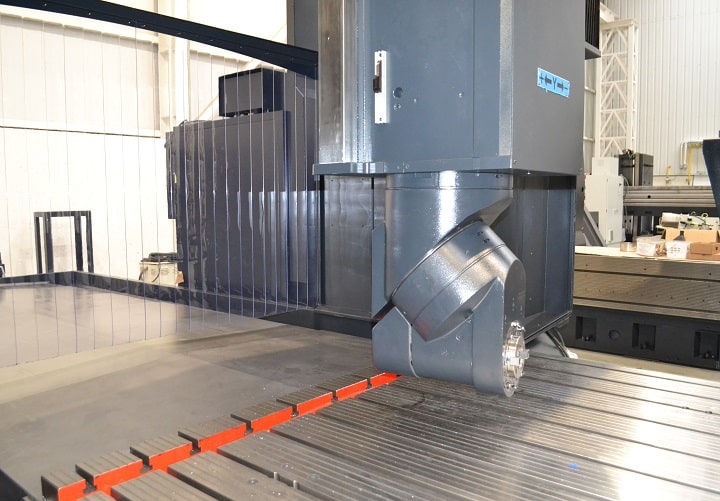

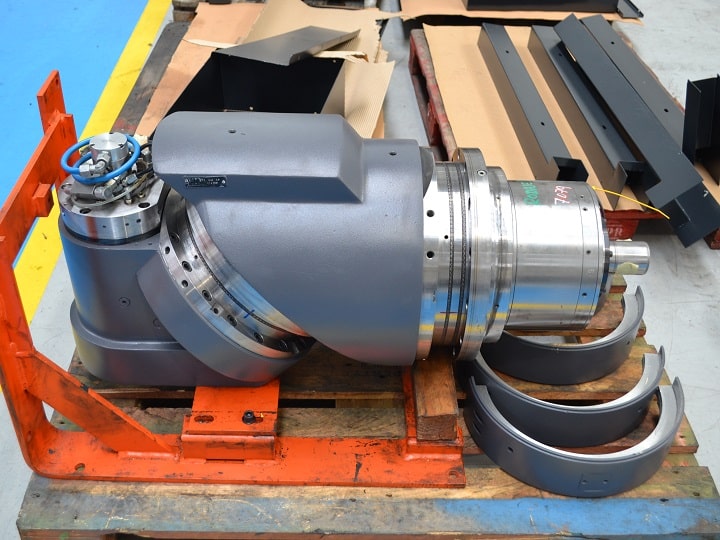

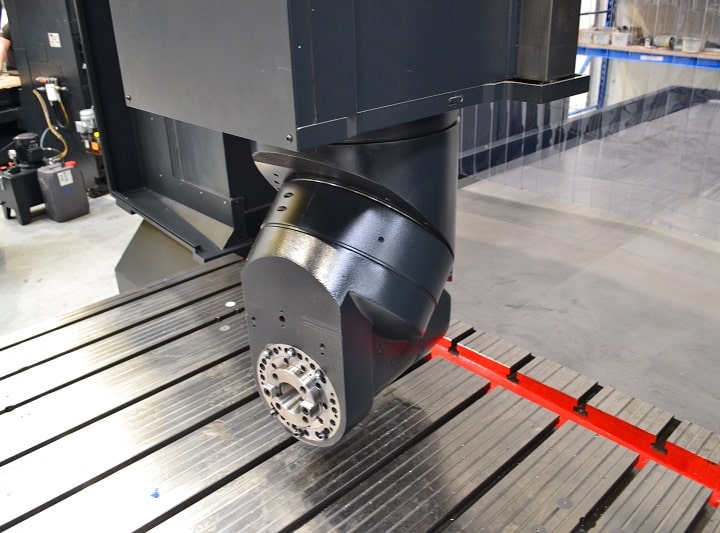

Universal Auto-indexing differential head (UAD) with 6000 rpm.
Automatic tool changer (ATC30).
Electronic handwheel HR-420.
External and high pressure through spindle coolant.
Guarding.

Retrofitting of milling machines with excellent machining and accuracy


Find out more details!


Pictures at previous customer, before retrofitting process.

Retrofitting NICOLAS CORREA PRISMA 25 milling machine Retrofitting NICOLAS CORREA PRISMA 25 milling machine Retrofitting NICOLAS CORREA PRISMA 25 milling machine Retrofitting NICOLAS CORREA PRISMA 25 milling machine Retrofitting NICOLAS CORREA PRISMA 25 milling machine Retrofitting NICOLAS CORREA PRISMA 25 milling machine Retrofitting NICOLAS CORREA PRISMA 25 milling machine Retrofitting NICOLAS CORREA PRISMA 25 milling machine Retrofitting NICOLAS CORREA PRISMA 25 milling machine

CORREA PRISMA 25 - 967628

  • COMING SOON

Retrofitting CORREA PRISMA milling machine



Control unit HEIDENHAIN TNC-530
Travels (X/Y/Z): 2500 / 1000 / 1000 mm
Auto-indexing milling head UDG (every 2,5º)
Automatic tool changer (ATC30)
Chip conveyor
External coolant and high-pressure coolant through spindle
Electronic handwheel HR-420
Perimetral guarding



Find out more details!

Retrofitting of CORREA CF25/25 milling machine by NC Service Retrofitting of CORREA CF25/25 milling machine by NC Service Retrofitting of CORREA CF25/25 milling machine by NC Service Retrofitting of CORREA CF25/25 milling machine by NC Service

CORREA CF25/25 - 625064

  • REFURBISHMENT ONGOING

Retrofitting CORREA CF25/25 milling machine



Control unit HEIDENHAIN TNC-530
Travels (X/Y/Z): 2500 / 1000 / 1500 mm
Auto-indexing head UDG (every 2,5º) / 3.000 rpm
New automatic tool changer (30 tools)
Rear longitudinal chip coveyor
Electronic handwheel HR-410
External coolant and high pressure through spindle
Guarding



Find out more details!

Retrofitting ANAYAK HVM-3300 milling machine Retrofitting ANAYAK HVM-3300 milling machine Retrofitting ANAYAK HVM-3300 milling machine Retrofitting ANAYAK HVM-3300 milling machine Retrofitting ANAYAK HVM-3300 milling machine

ANAYAK HVM 3300 - M-980505

  • REFURBISHMENT ONGOING

Retrofitting ANAYAK HVM-3300 milling machine



Control unit HEIDENHAIN TNC-426
Travels (X/Y/Z): 2700 / 1000 / 1000 mm
Auto-indexing milling head BIRA - Body B (every 1º) and C (every 2,5º)
Automatic tool changer (ATC30)
Longitudinal rear chip conveyor
External coolant and internal through tool (B type)
New electronic handwheel HR-510
Guarding



Find out more details!

Used ANAYAK milling machines - NC Service Used ANAYAK milling machines - NC Service Used ANAYAK milling machines - NC Service Used ANAYAK milling machines - NC Service Used ANAYAK milling machines - NC Service

ANAYAK HVM-7000 - 20020202

  • REFURBISHMENT ONGOING

ANAYAK HVM-7000 milling machine retrofitted by NC Service



Control unit HEIDENHAIN TNC-430  (Opt: new TNC640)
Longitudinal traverse (X): 6300 mm
Vertical traverse (Y): 1200 mm
Transversal traverse (Z): 2000 mm.
Auto-indexing BIRA head (B&C bodies - every 2,5º)  (Opt: new UDG-2,5º)
Chip conveyor: 1 rear longitudinal
New electronic handwheel HR-510
External & internal through spindle coolant
Guarding.



Find out more details!


Pictures at previous customer, before retrofitting process


Retrofitting used NICOLAS CORREA PRISMA 25 milling machine Retrofitting used NICOLAS CORREA PRISMA 25 milling machine Retrofitting used NICOLAS CORREA PRISMA 25 milling machine Retrofitting used NICOLAS CORREA PRISMA 25 milling machine Retrofitting used NICOLAS CORREA PRISMA 25 milling machine

CORREA PRISMA 25 - 967553

  • REFURBISHMENT ONGOING

Retrofitting CORREA PRISMA milling machine


Control unit HEIDENHAIN TNC-530
Travels (X/Y/Z): 2500 / 1000 / 1000 mm
Auto-indexing milling head UDG40, every 2,5º
Electronic handwheel HR-410
External coolant and option of high pressure through spindle
Guarding



Find out more details about this second hand milling machine!

Almost new CORREA milling machine, CORREA FP30/30 Almost new CORREA milling machine, CORREA FP30/30 Almost new CORREA milling machine, CORREA FP30/30

CORREA FP30/30 - 8900004

  • REFURBISHMENT ONGOING

Retrofitting of used CORREA FP milling machine


Control unit HEIDENHAIN TNC-530.
Travels (X/Y/Z): 2500 / 1800 / 800 mm.
Distance between columns: 1680 mm.
Right angel manual head (CHM-40) with 5000 r.p.m. in direct spindle.
New electronic handwheel HR-510.
External coolant.
Guarding.



Retrofitting of used CNC CORREA milling machine


Find out more details!

CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service CORREA FP40/50 milling machine - Retrofitted by NC Service

CORREA FP40/50

  • REFURBISHMENT ONGOING

Second hand CORREA bridge type milling machine



Control Unit: SIEMENS 840D
Travels (X/Y/Z): 5000 / 3250 / 1000 mm
Distance between columns: 2500 mm
C5E-2 axis continuous milling head
Automatic tool changer of 60 tools (ATC60)
NEW! Electronic handwheel
Guarding

Find out more about this used bridge milling machine here!

Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine Gantry type CORREA PANTERA milling machine

CORREA PANTERA

  • REFURBISHMENT ONGOING

Retrofitted CORREA gantry milling machine.

Control unit SIEMENS 840D.
Travels (X/Y/Z): 14000 / 3100 / 1200 mm.
Distance between columns: 4417 mm.
5 Axes "C5C" Electrospindle 18.000 r.p.m.
Automatic tool changer of 24 tools (ATC24)
Internal & external coolant.
Guarding.

Clearance sale!

Used milling machine for sale here!

View all results

Can't you find the milling machine you want?

Please complete the following form and we'll help you look.
